Trustpick

LCD 디스플레이 태양광 방사선 측정기

₩121,000 KRW

재고 있음

Receives in 7 days.

ZOYI

ZOYI VC921 포켓 휴대용 자동 범위 디지털 멀티미터, VC921

₩18,000 KRW

재고 있음

Receives in 7 days.

Trustpick

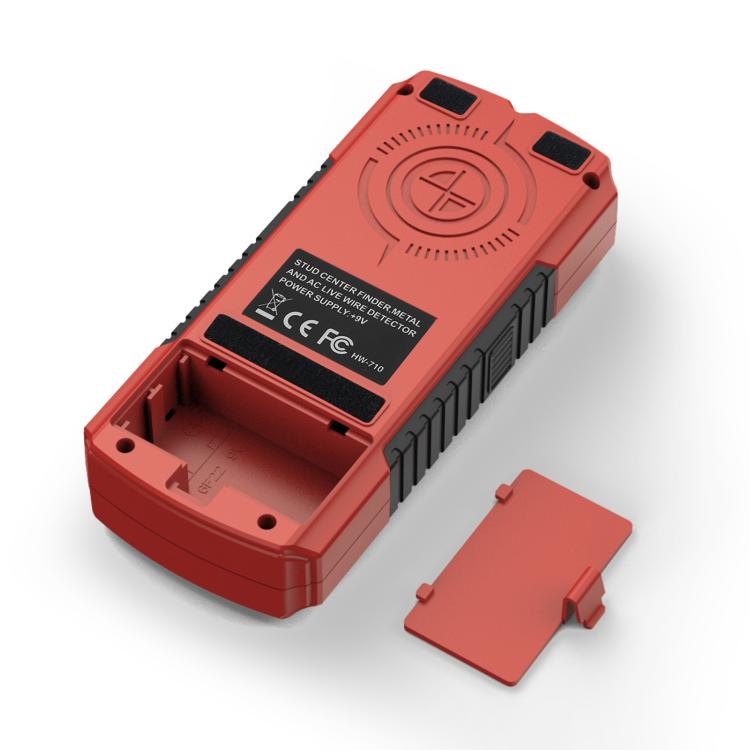

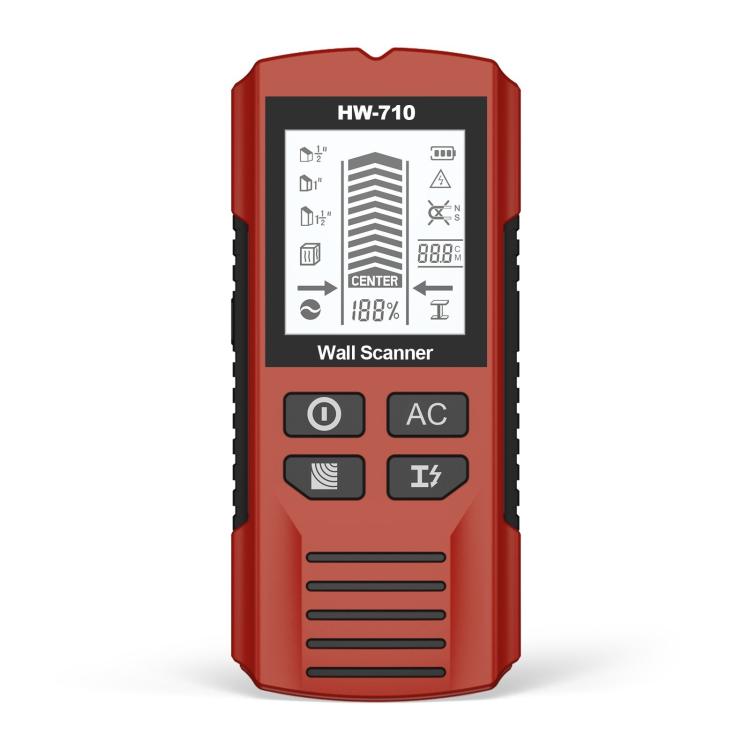

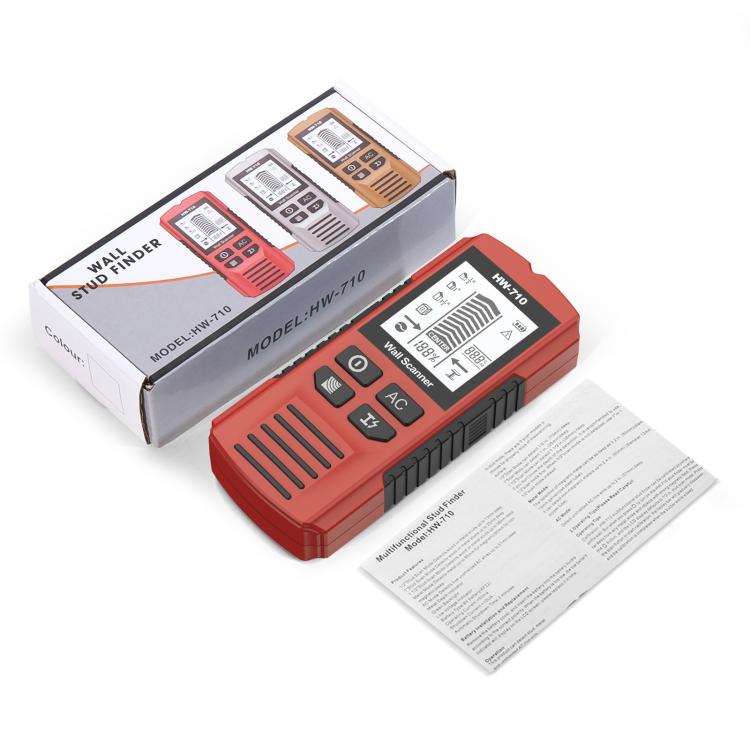

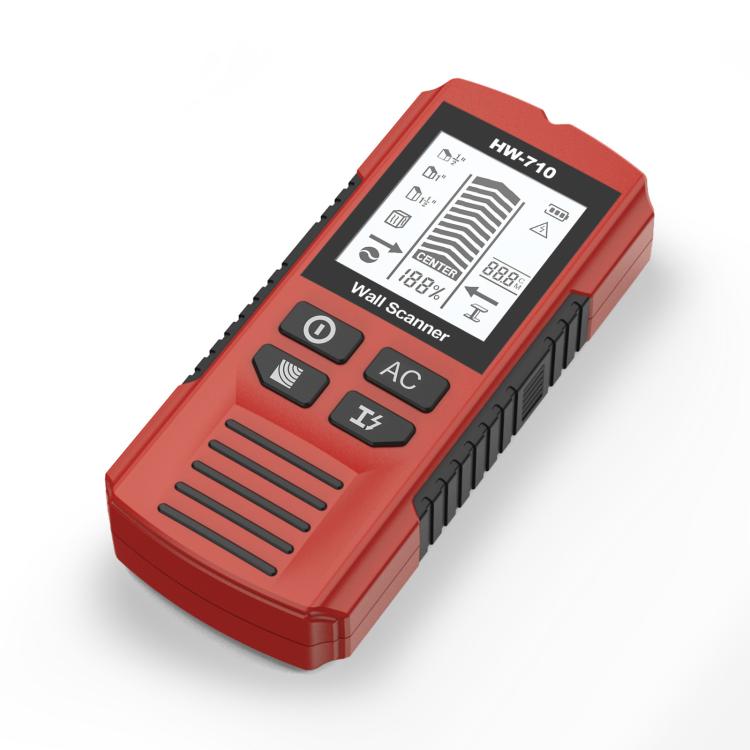

HW-710 5-in-1 벽 스캐너 금속 탐지기 스터드 파인더 측정기

₩23,000 KRW

재고 있음

Receives in 7 days.

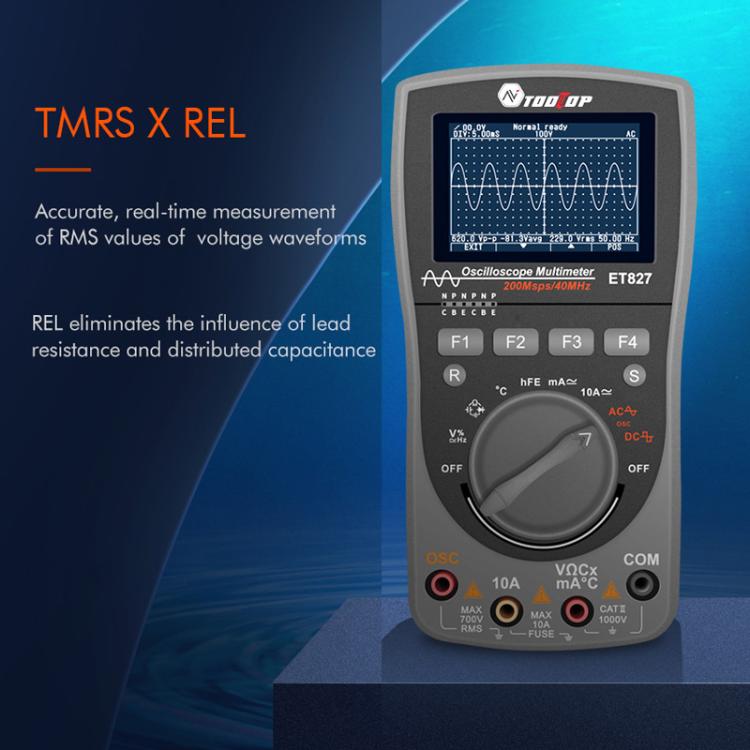

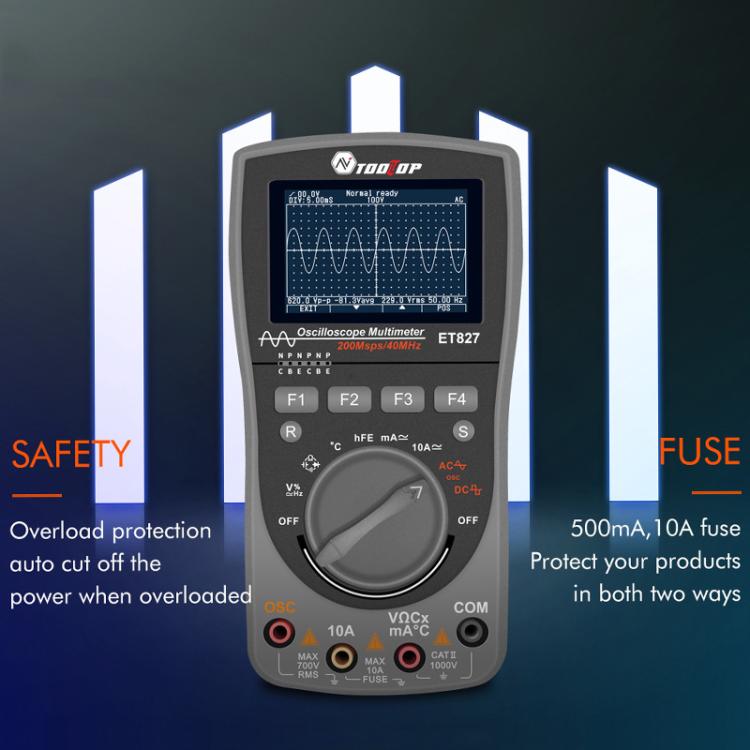

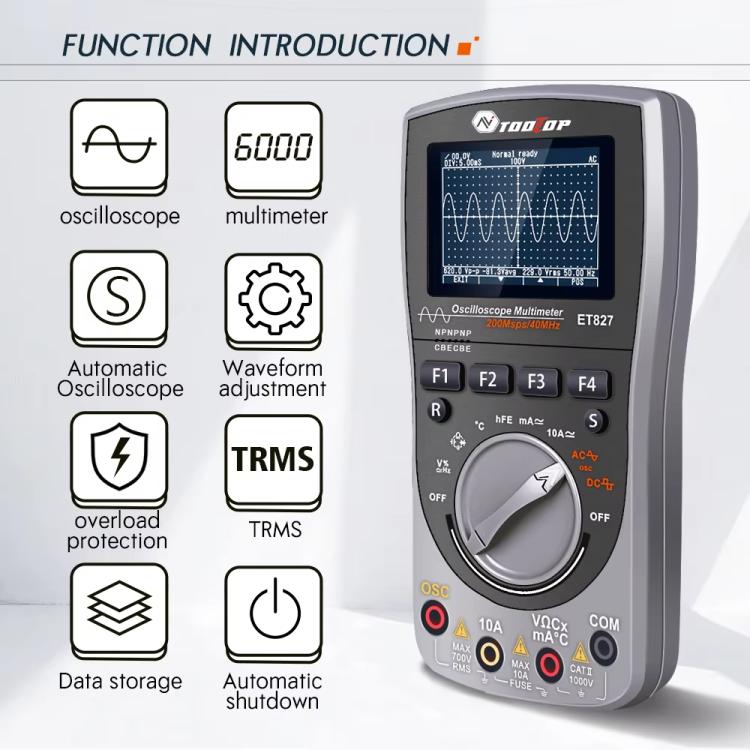

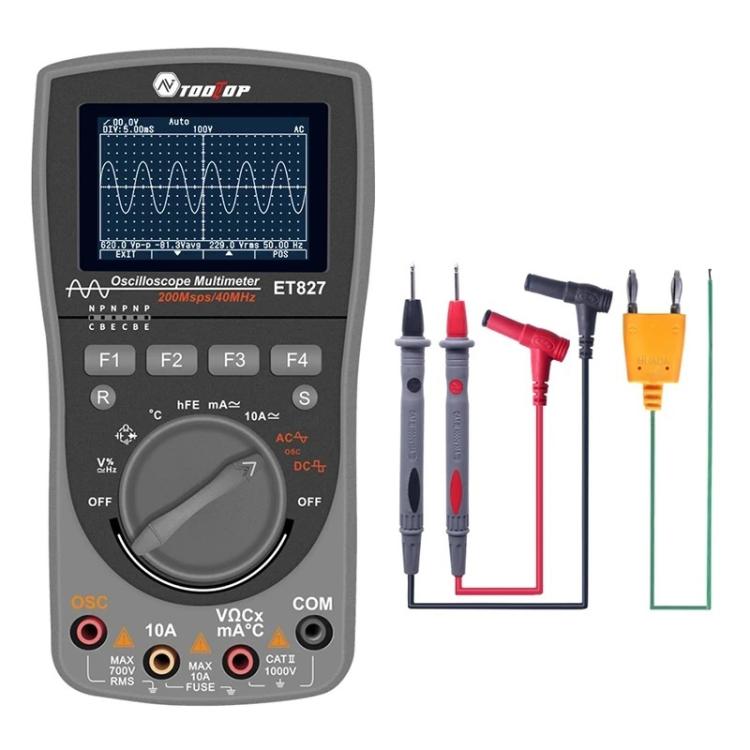

오실로스코프 멀티미터 200Msps 샘플링 속도 40MHz 오실로스코프 + 멀티미터 2-in-1, ET827

TOOLTOP

오실로스코프 멀티미터 200Msps 샘플링 속도 40MHz 오실로스코프 + 멀티미터 2-in-1, ET827

₩147,000 KRW

1. Display: 240 x 160 pixel LCD
2. Backlight: black screen with white backlight
3. Impedance: 10 megohm
4. Battery: AA battery x 3 (not included)
5. Auto power off: no operation within 15 minutes
6. Storage: 100 sets of data, 50 waveforms
7. Operating environment: 0 - 40 degrees Celsius, less than 75%RH
8. Storage environment: -10 - 60 degrees Celsius, less than 90%RH
9. Display area: about 6 x 4cm
10. Dimensions: about 8.3 x 16 x 3.2cm
11. Weight: about 210g

Oscilloscope:
1. Analog bandwidth: 40MHz
2. Nonlinearity: +/-1 bit
3. Vertical resolution: 8 bits
4. Coupling mode: AC/DC
5. Sweep mode: auto / normal / single
6. Record length: 24.0 div
7. Vertical sensitivity range: 500mV/div - 200V/div
8. Maximum real-time sampling rate: 200Msps
9. Vertical amplitude accuracy: +/-(5%+ 0.2div)
10. Scale: vertical +/-6.0, horizontal 24.0
11. Automatic zero reference: DC measurement
12. Time base range: 12.5ns/div - 10s/div
13. Cursor measurement function: dV, dt
14. Time base accuracy: +/-(0.01%+0.1div)
15. Trigger slope selection: rising edge/falling edge
16. Automatic measurement function: peak-to-peak value, average value, effective value
17. Automatic measurement accuracy: +/-(5%+0.2div)
18. The highest measurable voltage of the waveform: 700V

Multimeter:
1. Range:
- DC voltage: 600mV - 1000V +/-(0.75%rdg+10dgt)
- AC voltage: 600mV - 750V(TRMS) +/-(1.0%rdg+10dgt)
- DC current: 60mA - 500mA, 6A - 10A +/-(1.2%rdg+10dgt)
- AC current: 60mA - 500mA, 6A - 10A(TRMS) +/-(1.5%rdg+10dgt)
- Resistance: 600.0 ohms - 60.00 megohms +/-(1.0% reading + 5 digits)
- Capacitance: 9.999nF - 99.99mF +/-(2% reading + 10 digits)
- Frequency: 9.999Hz - 9.999MHz +/-(1.0% reading + 5 digits)
- Temperature: -20 degrees Celsius - 250 degrees Celsius +/-(2% reading + 10 digits)
2. Transistor: hFE
3. Diode: open circuit voltage is 3V, maximum test current is 2mA
4. Switch test: judge resistance is about 50 ohms
5. Fuse: 500mA/250V 10A/250V
6. Other functions: true RMS measurement, relative measurement, automatic/manual range, backlight, automatic shutdown, data storage

Features:
1. The handheld oscilloscope is used for waveform measurement, with two general test instrument functions: oscilloscope + multimeter, small size, beautiful appearance and clear interface
2. It can quickly and accurately detect faults in the circuit under test, suitable for outdoor research, production, debugging and maintenance, and can be used as an electronic device
3. Oscilloscope: 40MHz bandwidth and 200MHz real-time sampling rate, three trigger modes: automatic, normal and single, waveform saving, automatic measurement
4. Multimeter: equipped with dedicated chip, 6000 count display high precision, DC/AC current, voltage, resistance, frequency, diode, transistor, temperature test

Specification:

Package Weight

One Package Weight

0.42kgs / 0.93lb

One Package Size

21cm * 16cm * 6cm / 8.27inch * 6.3inch * 2.36inch

Qty per Carton

35

Carton Weight

15.80kgs / 34.83lb

Carton Size

47cm * 40cm * 32cm / 18.5inch * 15.75inch * 12.6inch

Loading Container

20GP: 443 cartons * 35 pcs = 15505 pcs
40HQ: 1029 cartons * 35 pcs = 36015 pcs

재고 있음

Receives in 7 days.

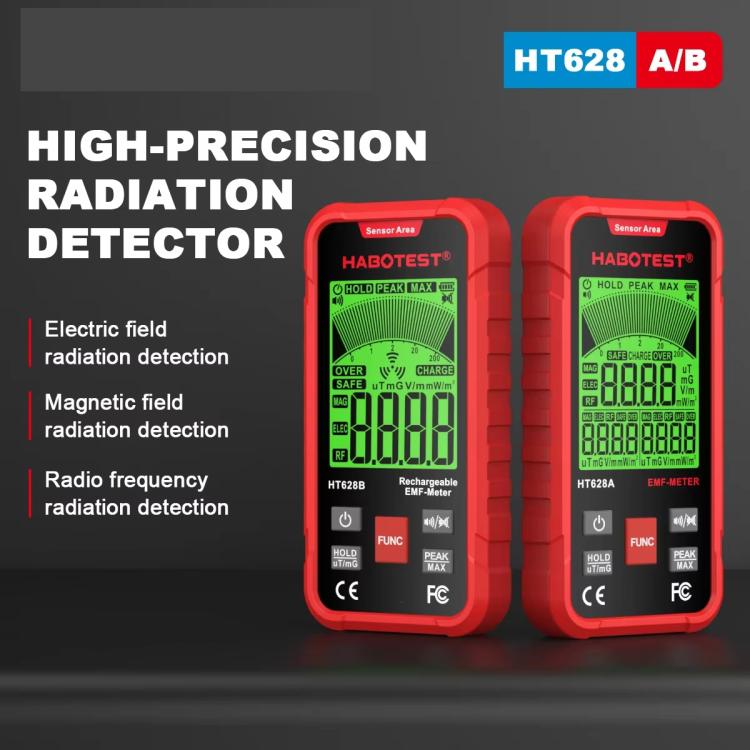

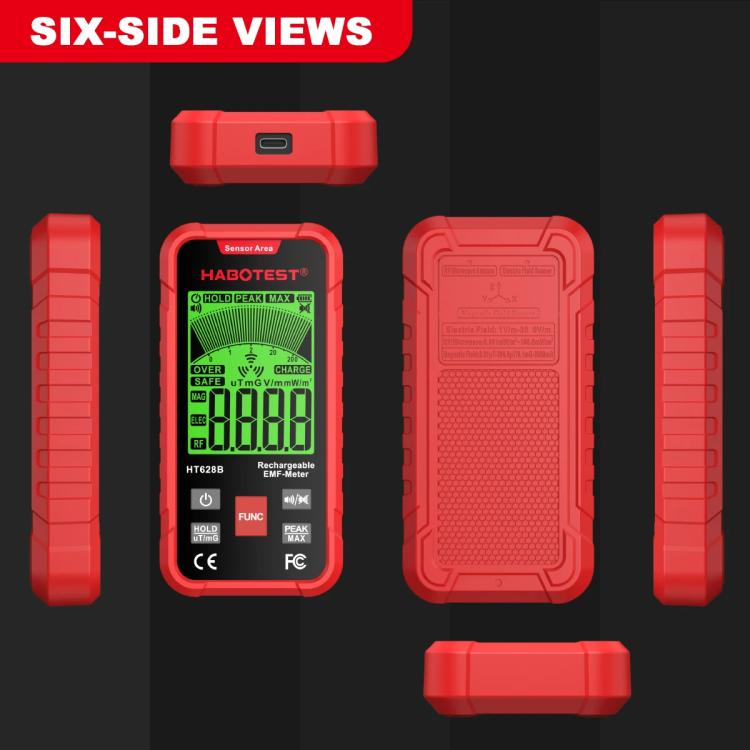

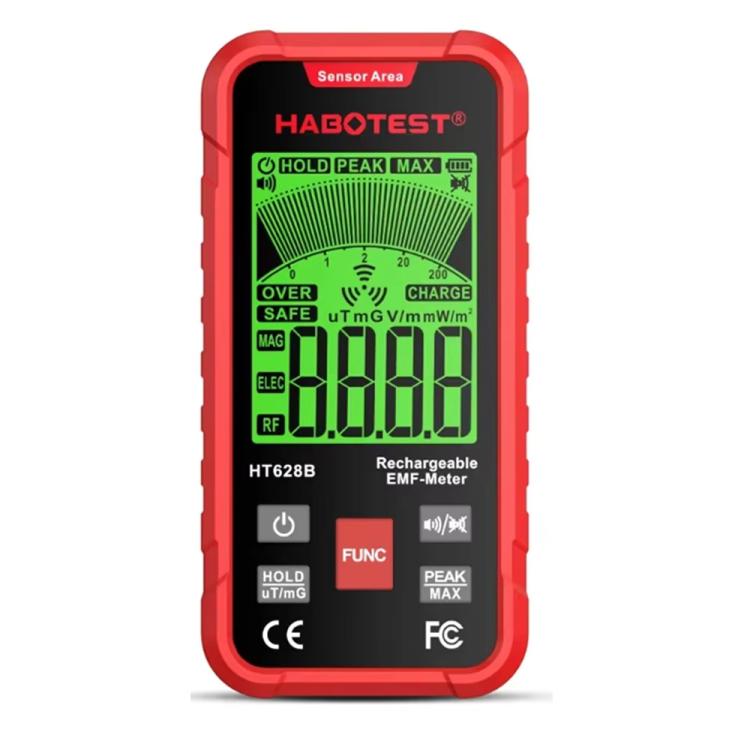

HABOTEST HT628B 다중 필드 EMF 미터 충전식 전자기 방사선 측정기, HT628B

HABOTEST

HABOTEST HT628B 다중 필드 EMF 미터 충전식 전자기 방사선 측정기, HT628B

₩83,000 KRW

재고 있음

Receives in 7 days.

Mingzheng

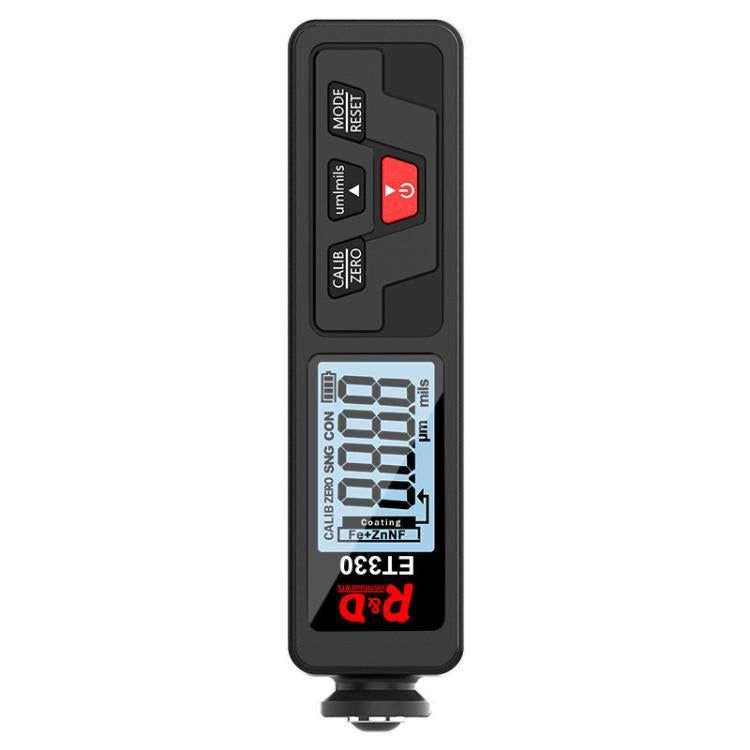

밍정 철 알루미늄 아연 3용도 페인트 필름 코팅 두께 게이지

₩136,000 KRW

재고 있음

Receives in 7 days.

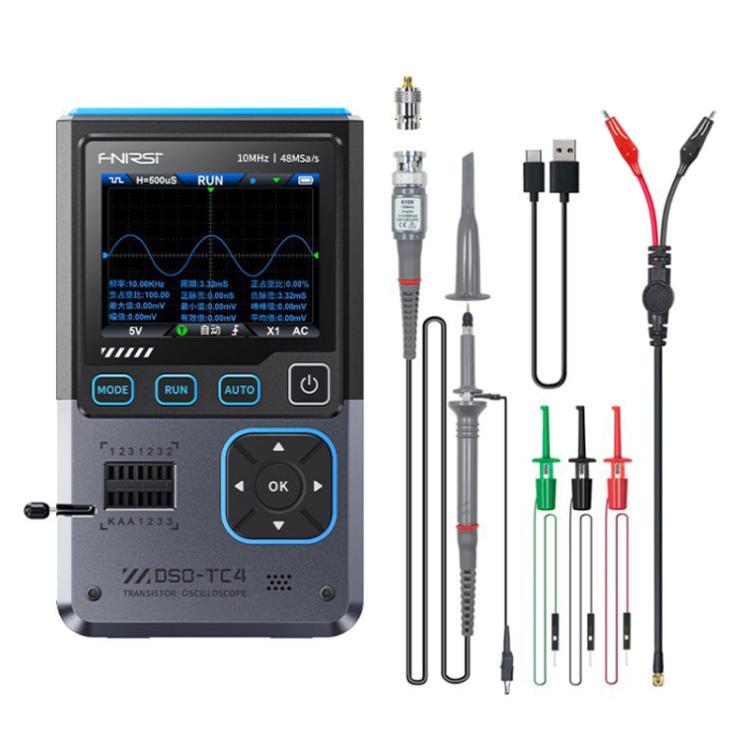

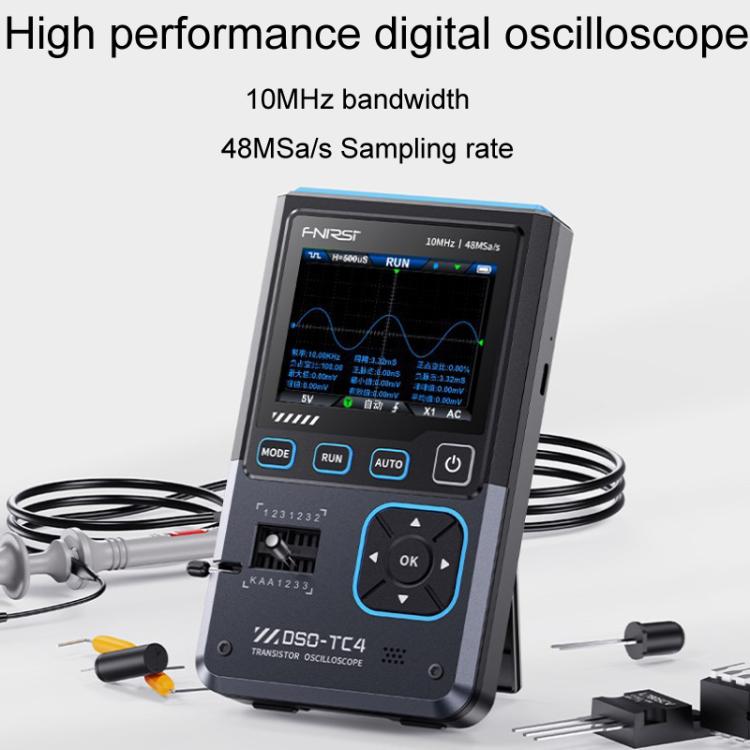

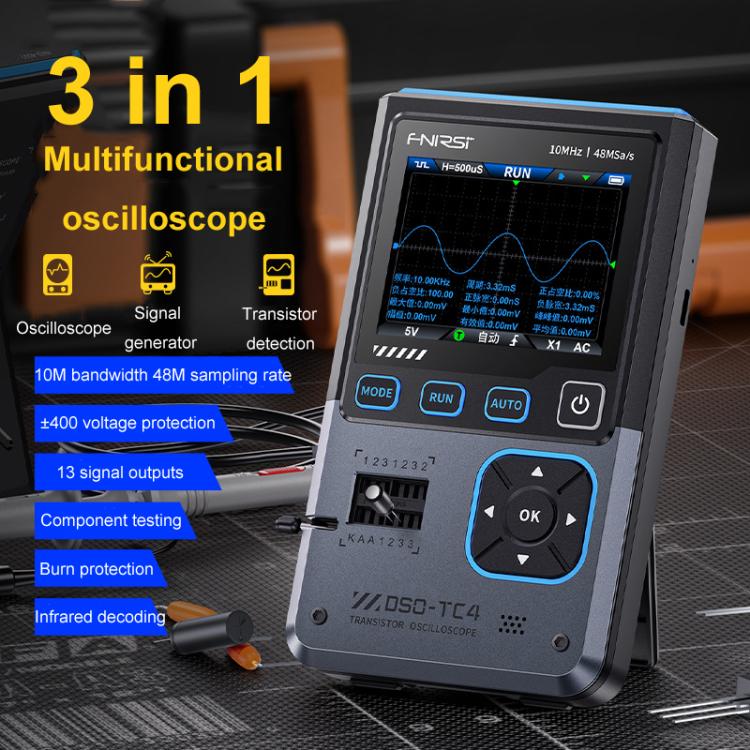

3-in-1 오실로스코프 트랜지스터 테스터 신호 발생기 10M 대역폭 번인 방지, FNIRSI DSO-TC4

FNIRSI

3-in-1 오실로스코프 트랜지스터 테스터 신호 발생기 10M 대역폭 번인 방지, FNIRSI DSO-TC4

₩127,000 KRW

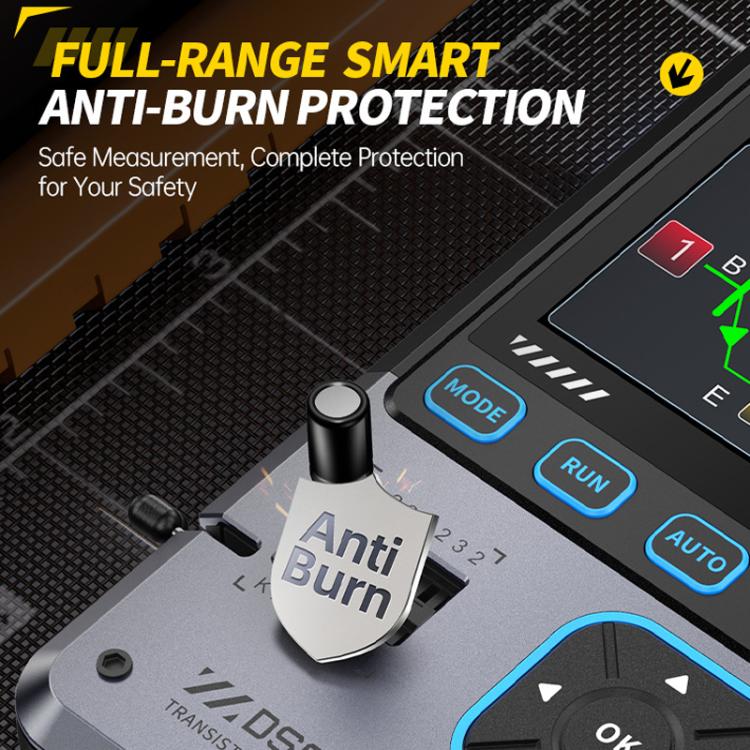

1. All-round intelligent anti-burn protection, safe measurement, comprehensive protection for your safety
2. Higher performance 10mhz bandwidth +48MS sampling, accurate capture of the waveform, master every detail
3. Efficient detection and intelligent identification of easy to test devices, such as diodes, zener diodes, thyristors, capacitors, resistors, inductors, transistors, mosfet
4. 13 kinds of signal waveforms, can meet a variety of test needs
5. Built-in 1500mAh lithium-ion battery, Type-C charging, automatic sleep mode, suitable for long-time work
6. USB share waveform data, easy to manage the oscilloscope, and connected to the PC via USB cable for secondary analysis

Functional parameters:
1. Screen: 2.8-inch TFT color screen
2. Backlight: adjustable backlight brightness
3. Power supply: TYPE-C (5V/1A)
4. Battery: 3.7V/1500mAh
5. Language: Chinese, English, German, Portuguese, Spanish, Japanese, Russian, Korean
6. Size: about 90 x 142 x 27.5mm
7. Weight: about 186g

Oscilloscope parameters:
1. Real-time sampling rate: 48MSa / s
2. Analog bandwidth: 10MHz
3. Input impedance: 1 megohm
4. Coupling method: AC/DC
5. Test voltage range: 1:1 probe: 80Vpp (+40V); 10:1 probe: 800Vpp (+400V)
6. Vertical sensitivity: 10mV/div-10V/div (X1 gear)
7. Vertical displacement: adjustable with indication level
8. Horizontal time base range: 50ns-20s

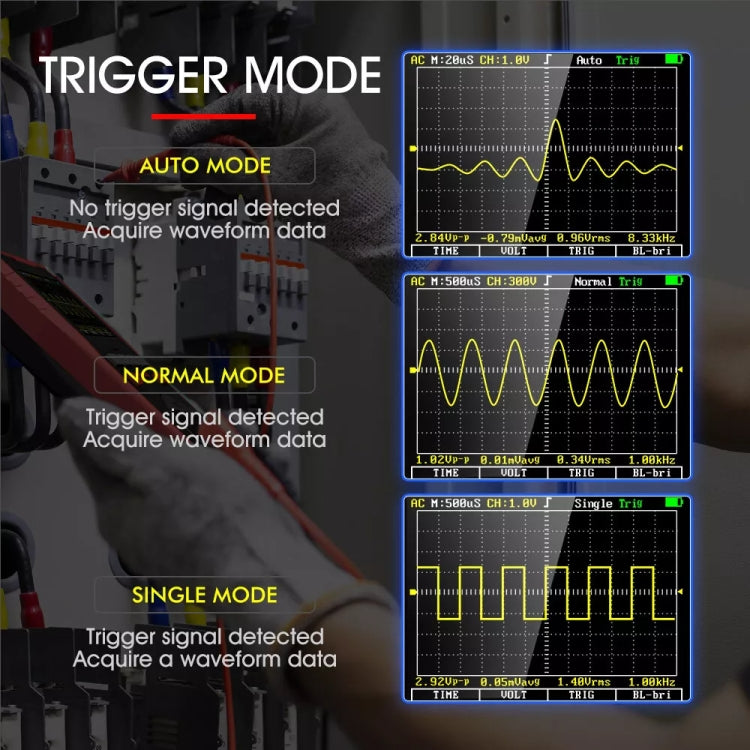

9. Trigger mode: automatic, regular and single (Auto/Normal/Single)
10. Trigger type: rising edge, falling edge
11. Trigger level: adjustable, with instructions
12. Waveform freeze: Yes (HOLD function)

Transistor parameters:
1. Diode: forward voltage drop less than 5V
2. Voltage regulator diode: 0-32V
3. Field Effect Tube: JFET, IGBT, MIOSTET
4. Unidirectional thyristor: turn-on voltage less than 5V, gate level
5. Bidirectional thyristor: trigger current 6 less than mA
6. Capacitance: 25pF-1000uF
7. Resistance: 0.01 ohm-50 megohm
8. Inductance: 10uH-1000uH

Signal generator parameters:
1. Output waveform: support 13 kinds of waveform output
2. Waveform frequency: 0-50KHz
3. Square wave duty cycle: 0-100 percent
4. Waveform amplitude: 0.1V-3.0V

Packing list:
DSO-TC4 tester x 1
P1600 oscilloscope probe x 1
Adaptor x 1
TYPE-C charging cable x 1
Normal probe x 1
Test hook x 3

Specification:

Package Weight

One Package Weight

0.42kgs / 0.93lb

One Package Size

21cm * 11cm * 7cm / 8.27inch * 4.33inch * 2.76inch

Qty per Carton

50

Carton Weight

22.20kgs / 48.94lb

Carton Size

55cm * 44cm * 35cm / 21.65inch * 17.32inch * 13.78inch

Loading Container

20GP: 314 cartons * 50 pcs = 15700 pcs
40HQ: 730 cartons * 50 pcs = 36500 pcs

재고 있음

Receives in 7 days.

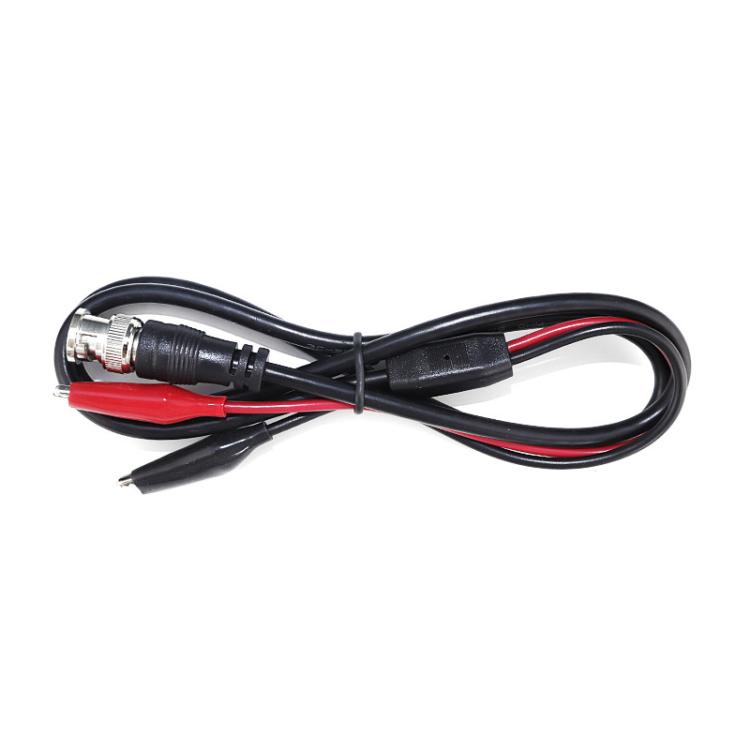

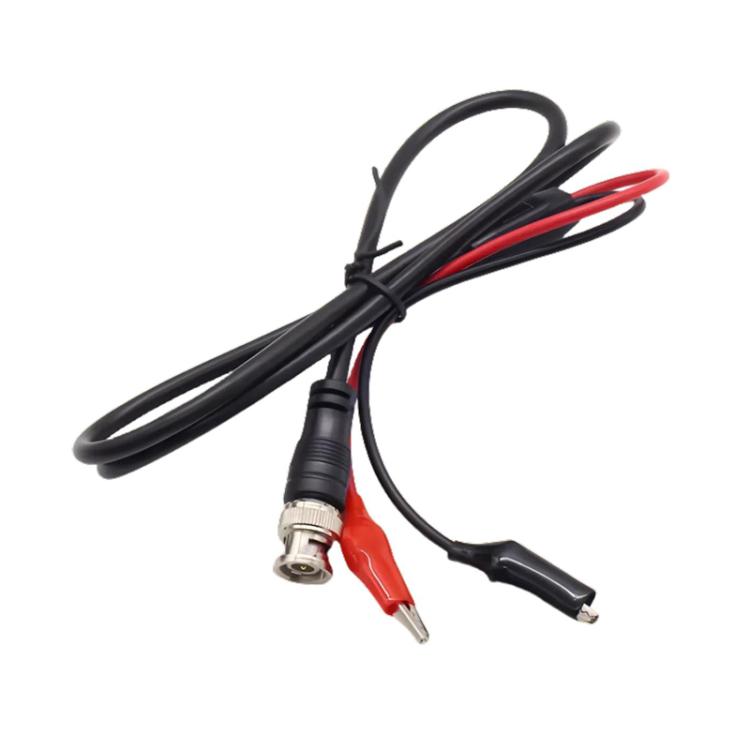

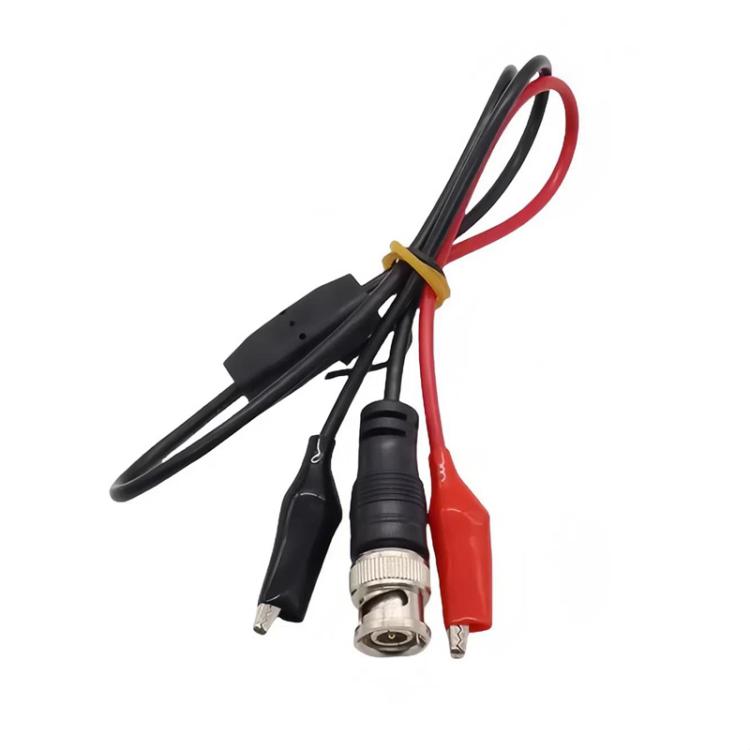

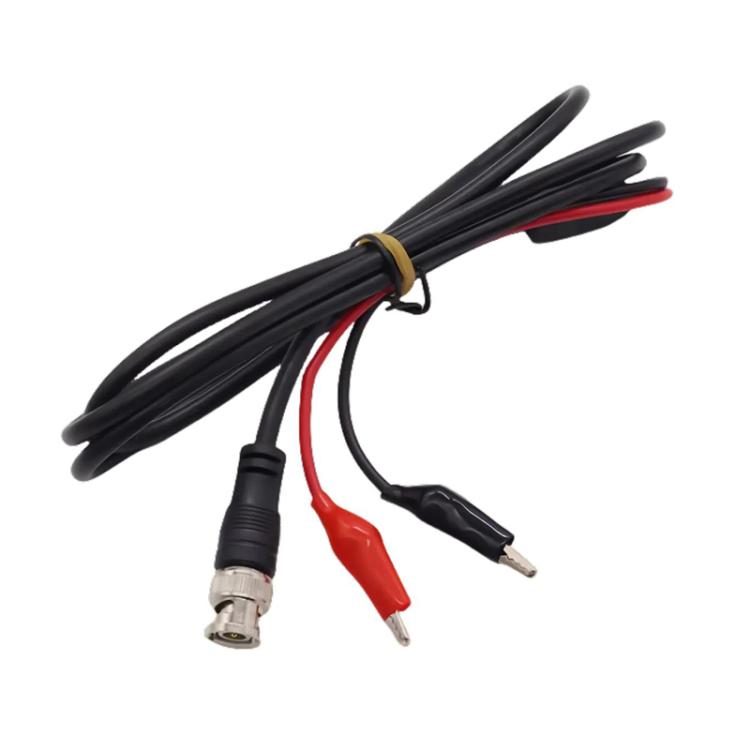

BNC 수 to 2 악어 클립 오실로스코프 프로브 케이블 Q9 신호 테스트 케이블, 0.5m, 1m, 1.5m

Trustpick

BNC 수 to 2 악어 클립 오실로스코프 프로브 케이블 Q9 신호 테스트 케이블, 0.5m, 1m, 1.5m

₩3,000 KRW부터

재고 있음

Receives in 7 days.

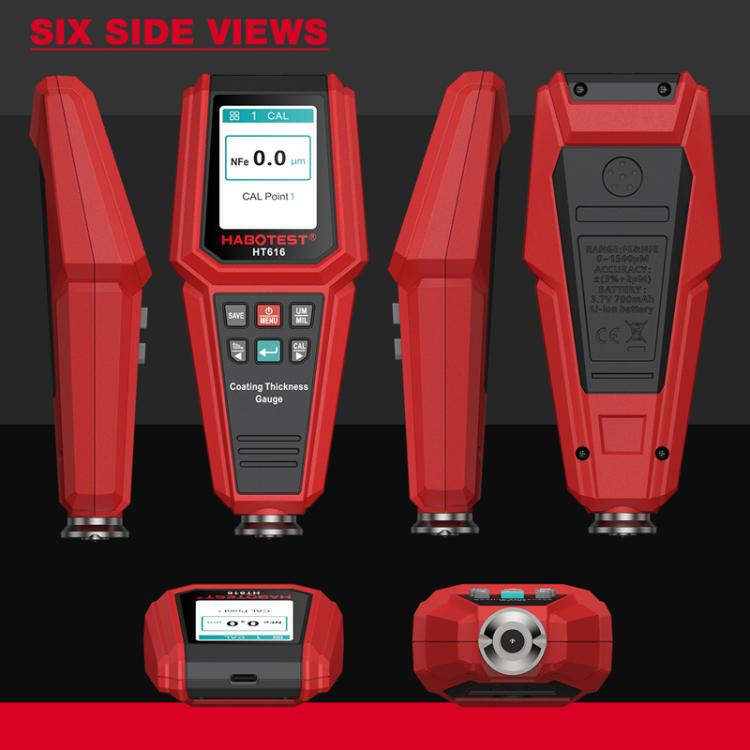

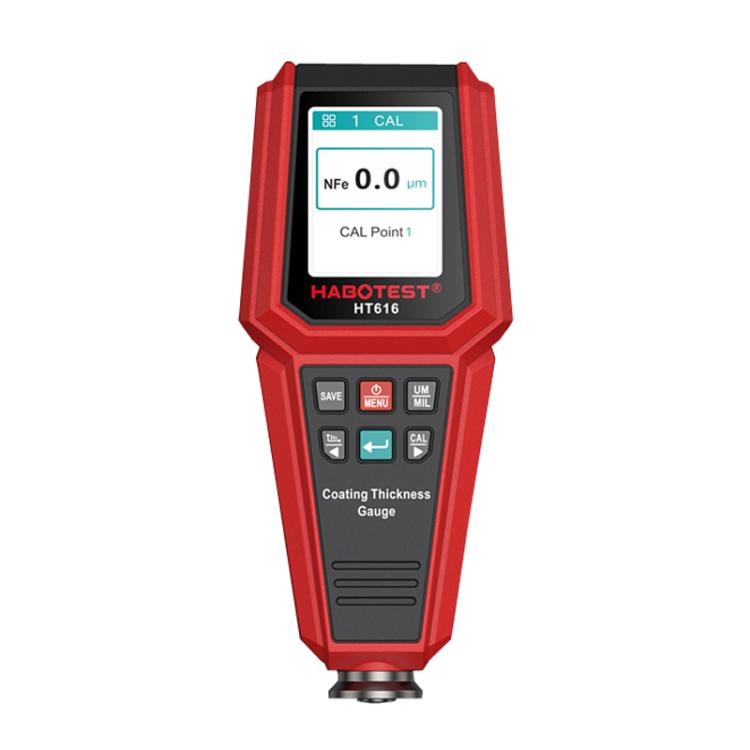

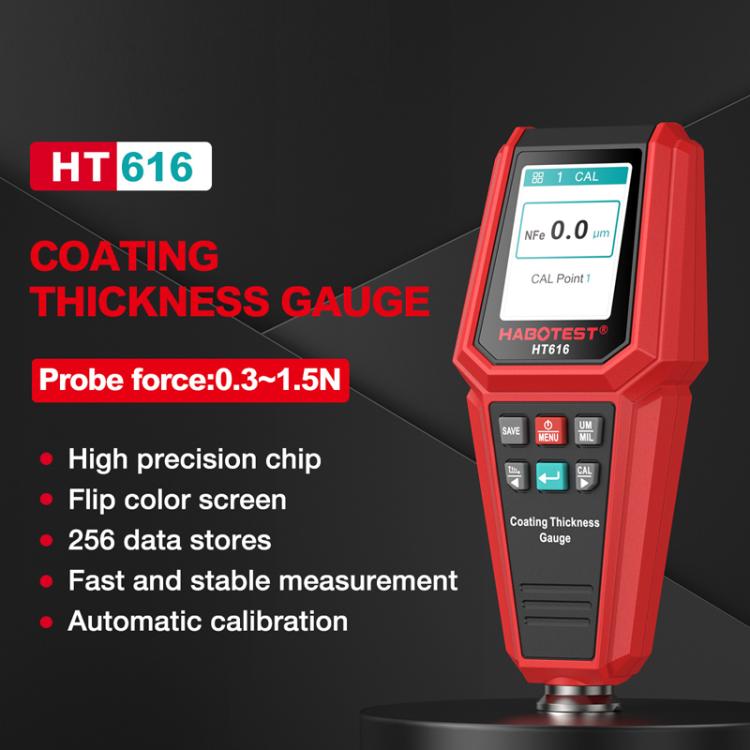

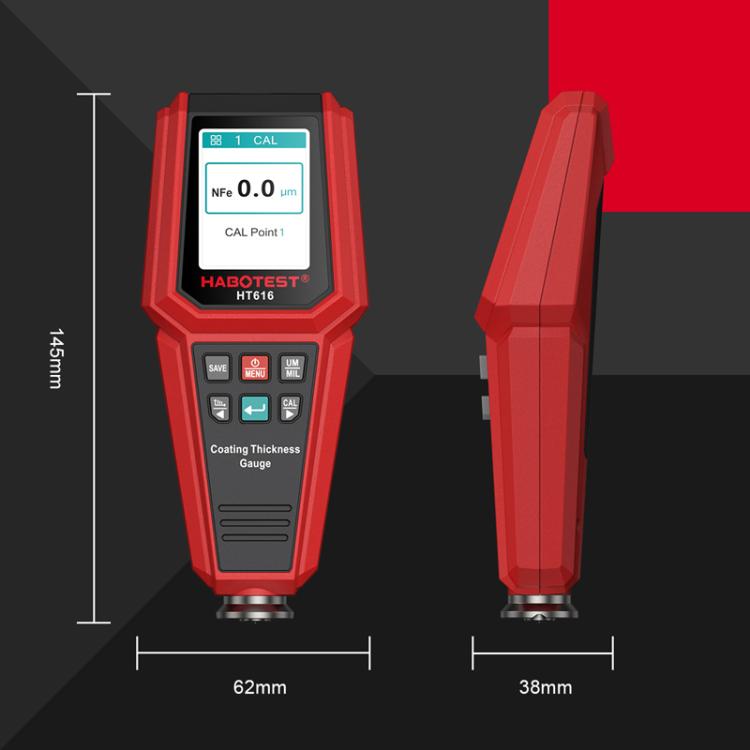

HABOTEST HT616 자동차 도장 테스터 도장 두께 게이지, HT616

HABOTEST

HABOTEST HT616 자동차 도장 테스터 도장 두께 게이지, HT616

₩128,000 KRW

1. Zero calibration and multi-point calibration: this instrument has been calibrated according to the reference data of the standard substrate (random iron and aluminum block) before leaving the factory, if the user needs to measure other materials, please calibrate the substrate to be measured
2. High sensitivity probe, just press to easily identify the material type and coating thickness
3. High-speed chip is accurate and stable, with a resolution of up to 0.1 micron, every factory instrument can measure accurately
4. Automatic substrate recognition, no need to switch according to different substrate properties, automatic recognition when measuring different substrates
5. Alarm limit setting, when the instruments measurement value is less than the lower limit value or greater than the upper limit value, it will prompt five consecutive beeps alarm
6. Multiple measurement methods to meet different needs: single measurement, continuous measurement, single-point measurement, multi-point measurement
7. Data storage: can store 256 measurement values (8 groups x 32)
8. Automatic flip screen, according to gravity sensing automatically rotate the screen, display content conveniently
9. Built-in 3.7V 700mAh rechargeable lithium battery, long battery life, rechargeable
10. Stable testing, high sensitivity, long service life
11. Large LCD backlight display, clear and intuitive readings, suitable for night measurement
12. Rubber material buttons, with good initial elasticity, increase the comfort of the use process, and buttons on the printing clear, not easy to wear and tear
13. Shell using secondary injection molding process manufacturing, feel good, easy to take, non-slip, more convenient measurement
14. Size: about 145 x 62 x 38mm

Specification:

Package Weight

One Package Weight

0.34kgs / 0.76lb

One Package Size

18cm * 9cm * 7cm / 7.09inch * 3.54inch * 2.76inch

Qty per Carton

40

Carton Weight

15.00kgs / 33.07lb

Carton Size

46cm * 28cm * 39cm / 18.11inch * 11.02inch * 15.35inch

Loading Container

20GP: 530 cartons * 40 pcs = 21200 pcs
40HQ: 1232 cartons * 40 pcs = 49280 pcs

재고 있음

Receives in 7 days.

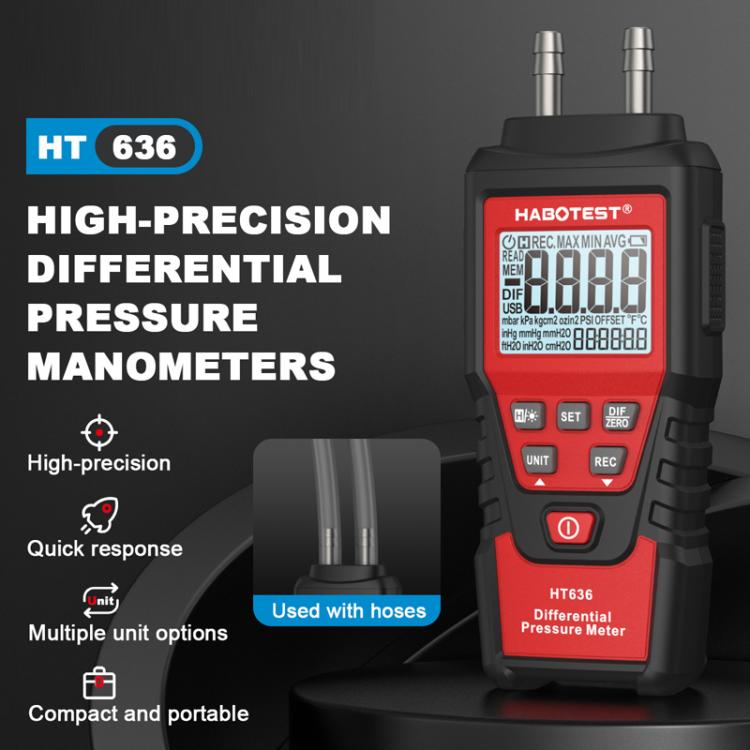

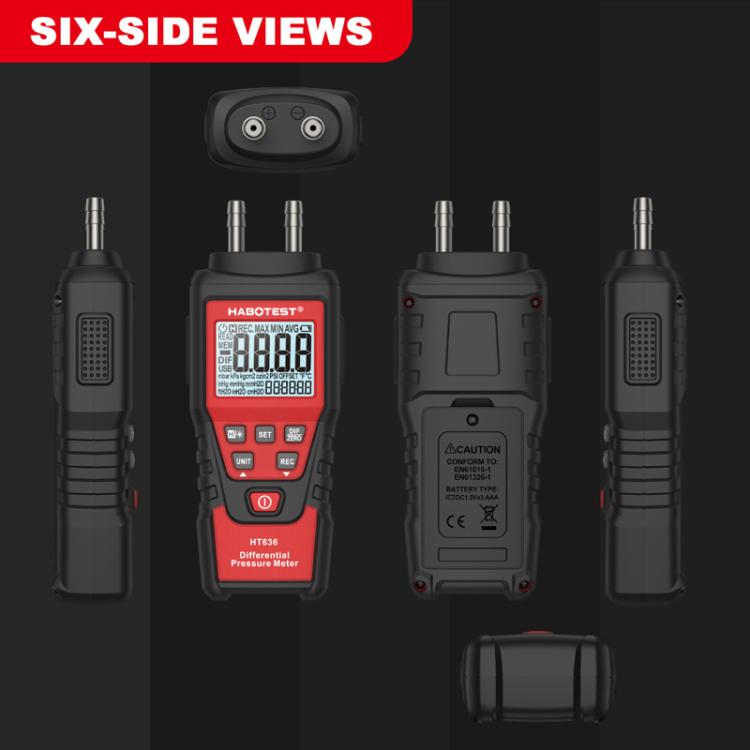

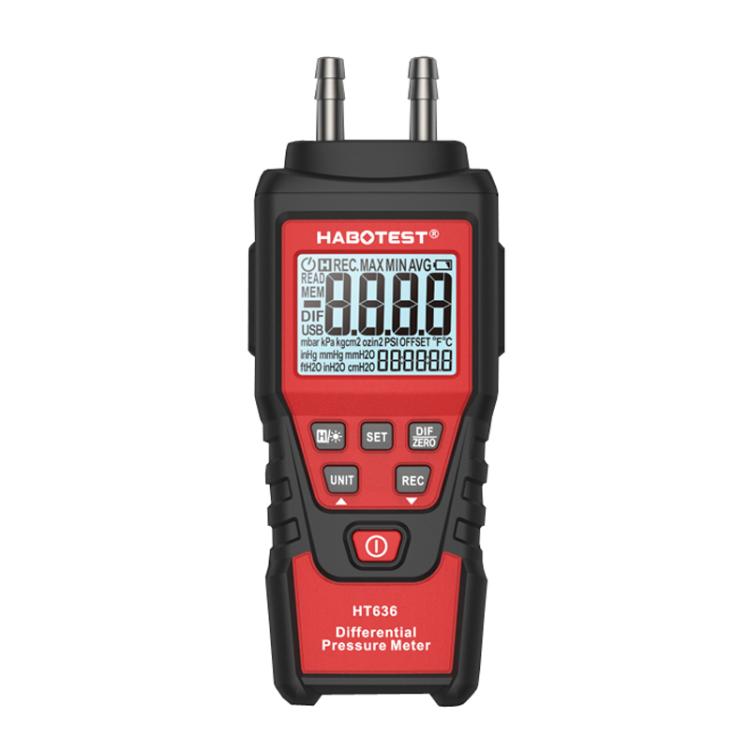

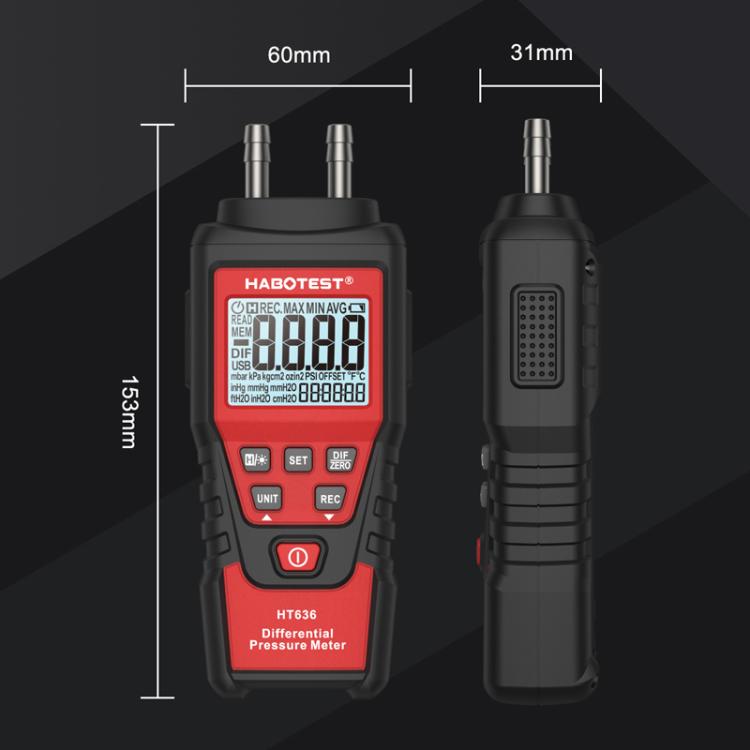

HABOTEST HT636 고정밀 차압 게이지 디지털 미세압력 테스터, HT636

HABOTEST

HABOTEST HT636 고정밀 차압 게이지 디지털 미세압력 테스터, HT636

₩79,000 KRW

재고 있음

Receives in 7 days.

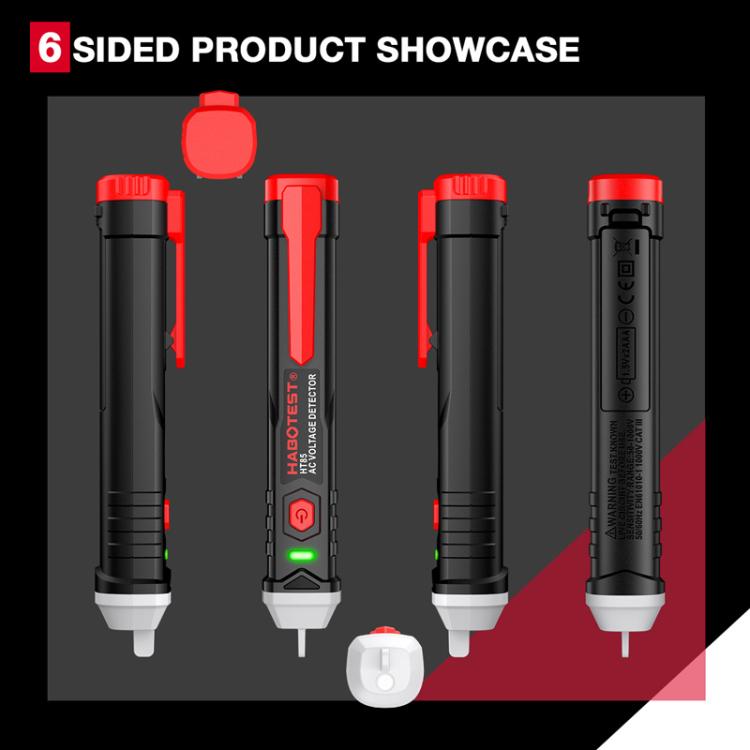

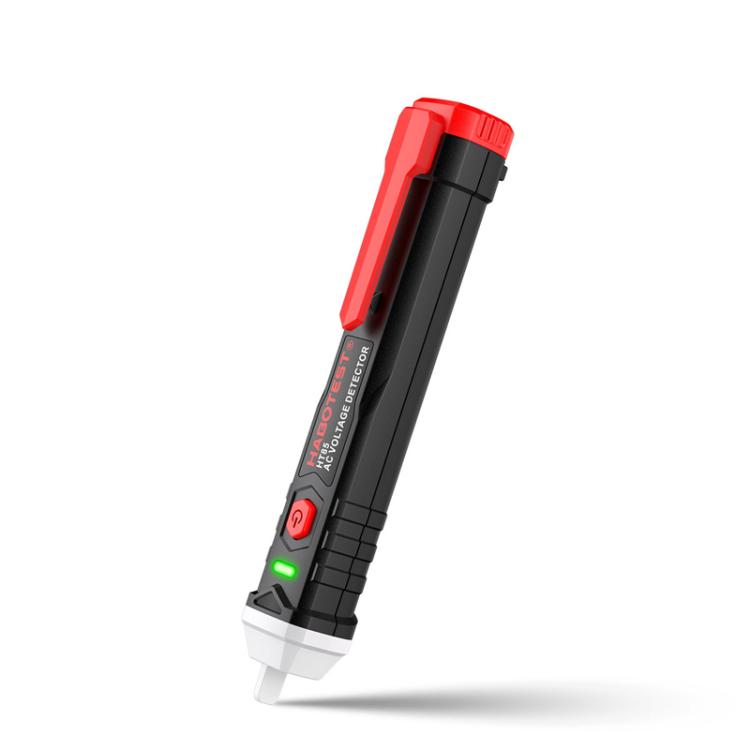

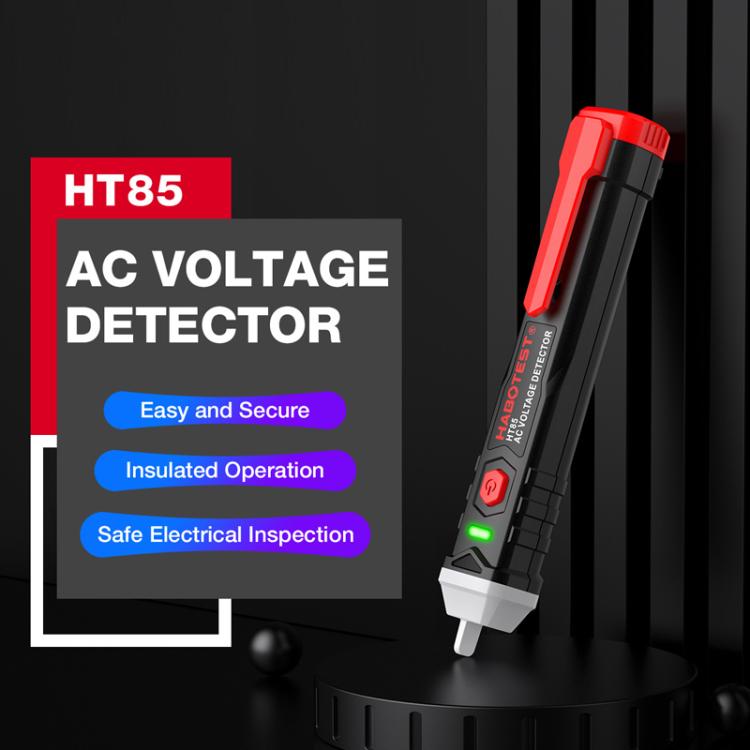

HABOTEST HT85 비접촉 전기 테스터 AC 전압 감지기, HT85

HABOTEST

HABOTEST HT85 비접촉 전기 테스터 AC 전압 감지기, HT85

₩16,000 KRW

1. AC Voltage Detection: When the probe end of the voltage tester is close to the AC voltage source, the red signal indicator flashes; the stronger the signal, the faster the red light flashes; at the same time, the beeping sound of the buzzer will increase in frequency with the enhancement of the signal strength
2. Flashlight illumination: LED illumination, convenient to detect voltage in dark environment
3. Circuit breakpoint detection: the pen stops flashing and buzzing when a breakpoint in the circuit is detected
4. Low battery warning: when the battery voltage is too low, the power indicator flashes, suggesting that the battery needs to be replaced in time
5. Auto Power Off: The voltage tester will automatically turn off after about 5 minutes of no signal detection or inactivity to prolong battery life
6. Portable pen clip design: portable and convenient for mobile measurement
7. High-strength shield: sturdy, wear-resistant, unbreakable
8. Inductive field, non-contact voltage detection (NCV): CAT-III 1000V overvoltage category, using non-contact high-sensitivity sensor for safe, fast and non-contact high-voltage detection

Parameters:
1. Display: LED
2. Voltage detection range: AC70-1000V
3. Frequency: 50/ 60Hz
4. Alarm mode: sound and light alarm
5. Probe shape: extended shape
6. Charged and neutral: according to the signal strength indication, the test signal on the firewire is stronger than the neutral
7. Signal strength display: LED from low to high, green to red
8. Signal strength indication method: sound from slow to fast
9. Automatic power-off: no operation, no inductive signal, 5 minutes or so automatic shutdown
10. Power supply: 2 x 1.5V AAA batteries (not included in shipment)
11. Safety level: EN61010-1, -2-030; EN61326-1, CAT-III class 1000V
12. Dimensions: about 146.6 x 24 x 27mm
13. Weight: about 28.7g

Specification:

Package Weight

One Package Weight

0.05kgs / 0.12lb

One Package Size

15cm * 4cm * 3cm / 5.91inch * 1.57inch * 1.18inch

Qty per Carton

200

Carton Weight

11.60kgs / 25.57lb

Carton Size

44cm * 33cm * 30cm / 17.32inch * 12.99inch * 11.81inch

Loading Container

20GP: 612 cartons * 200 pcs = 122400 pcs
40HQ: 1421 cartons * 200 pcs = 284200 pcs

재고 있음

Receives in 7 days.

Trustpick

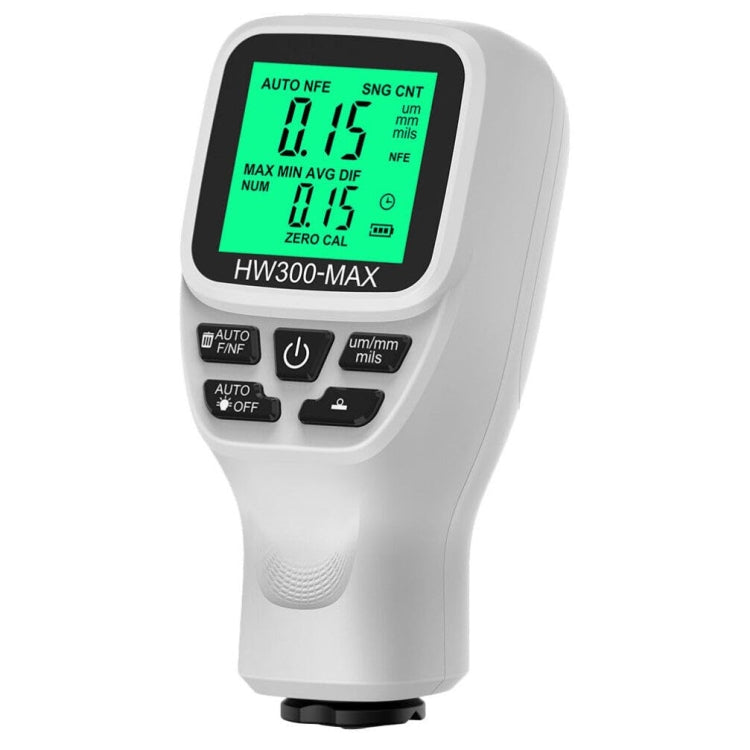

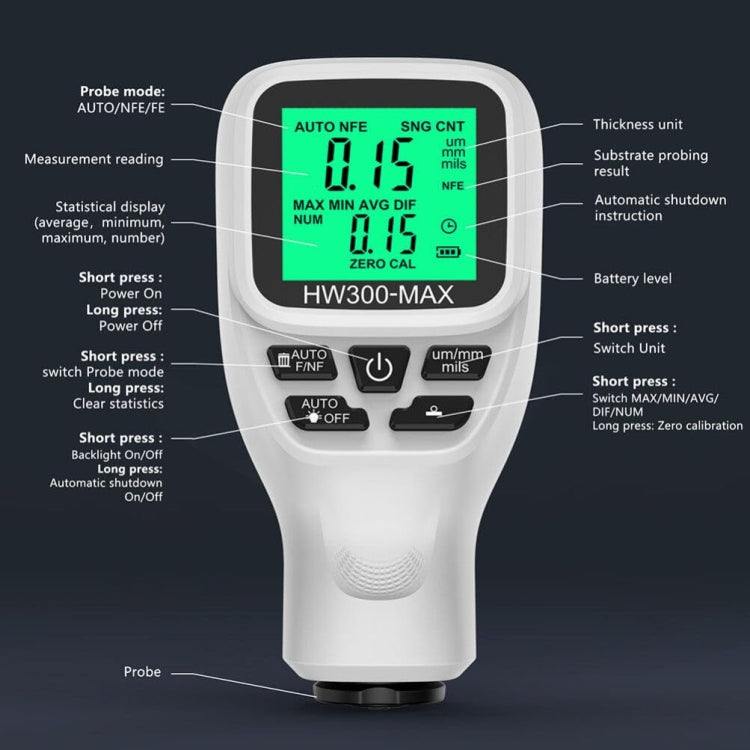

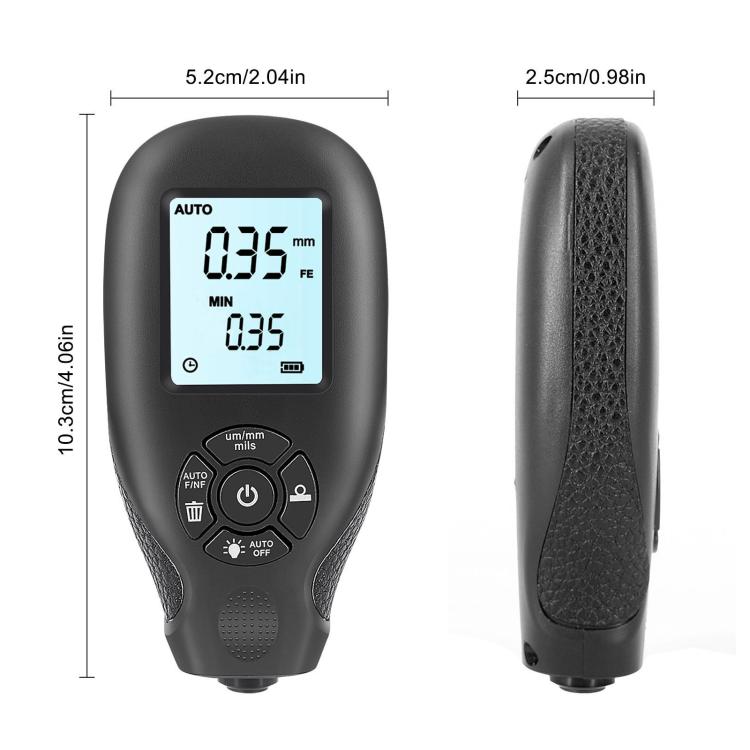

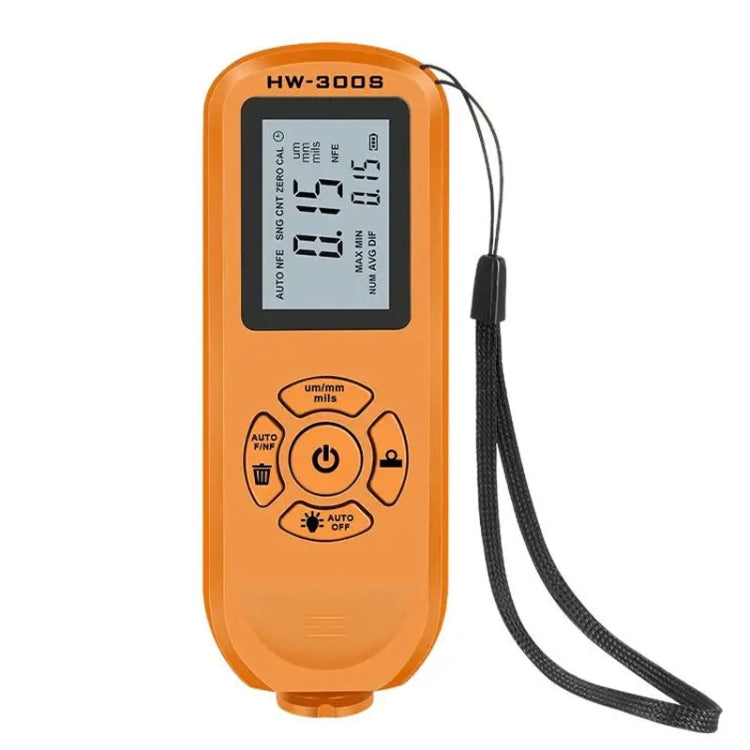

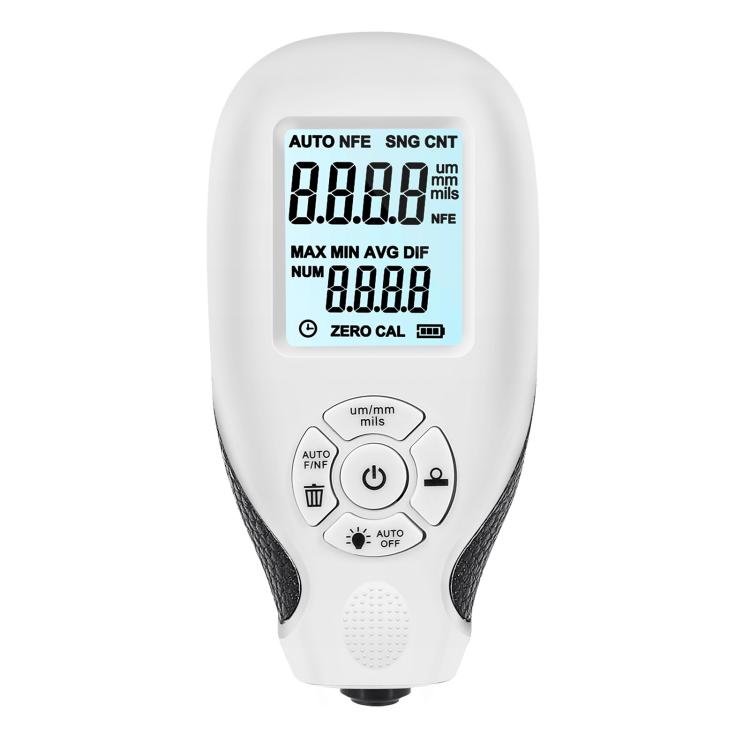

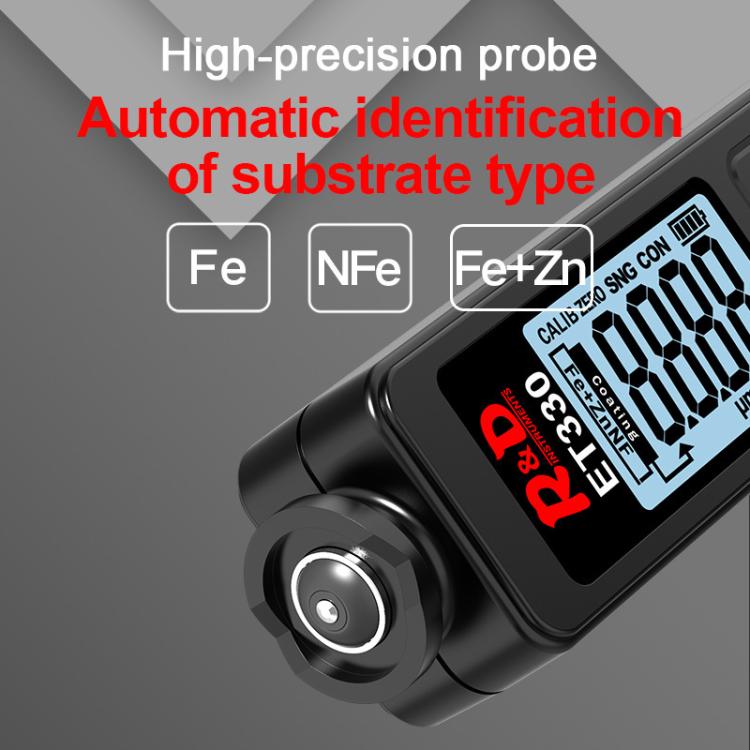

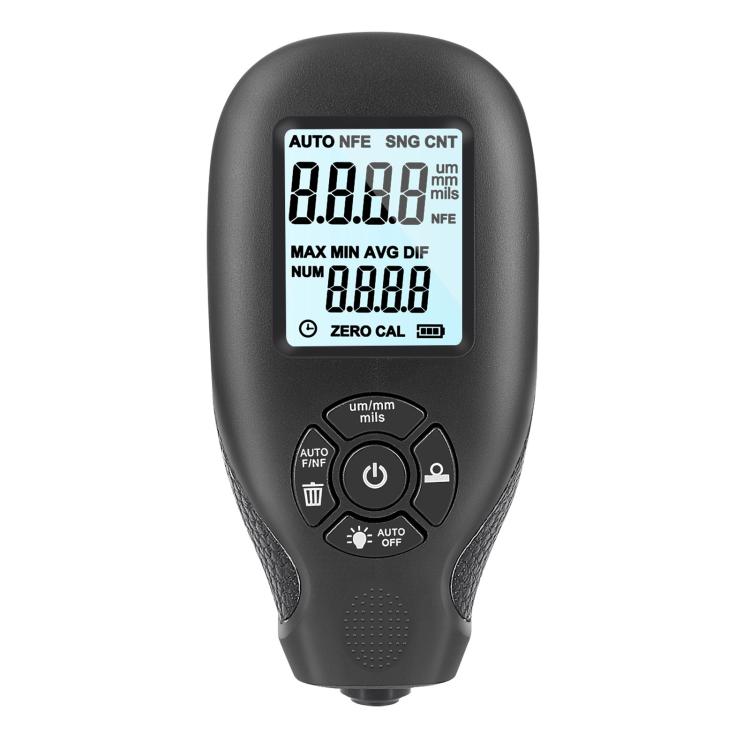

고정밀 논슬립 페인트 코팅 두께 게이지

₩27,000 KRW

재고 있음

Receives in 7 days.

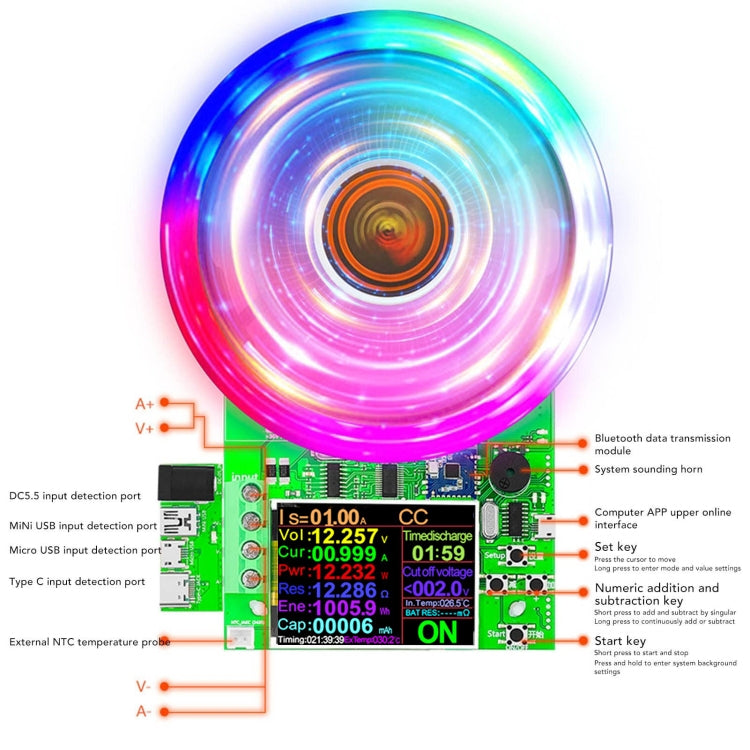

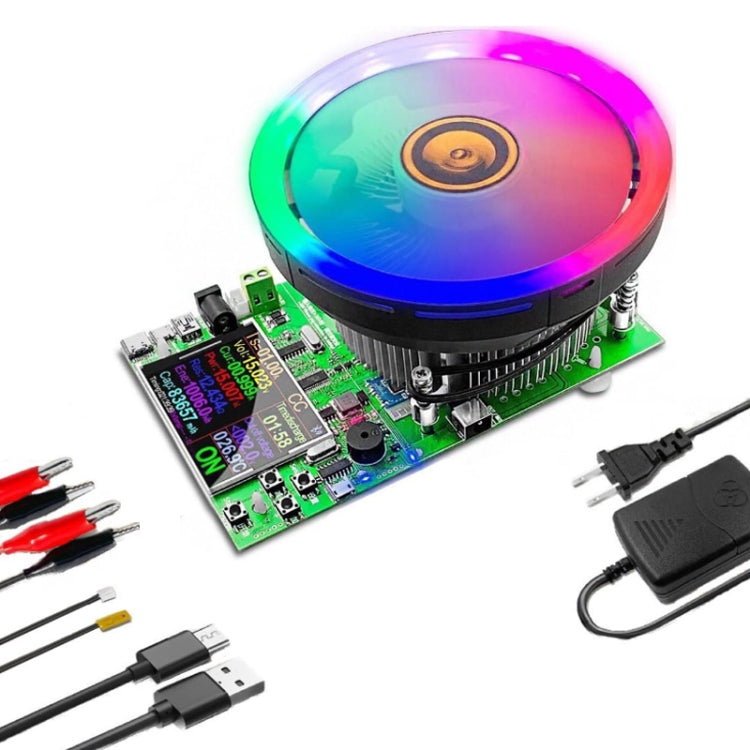

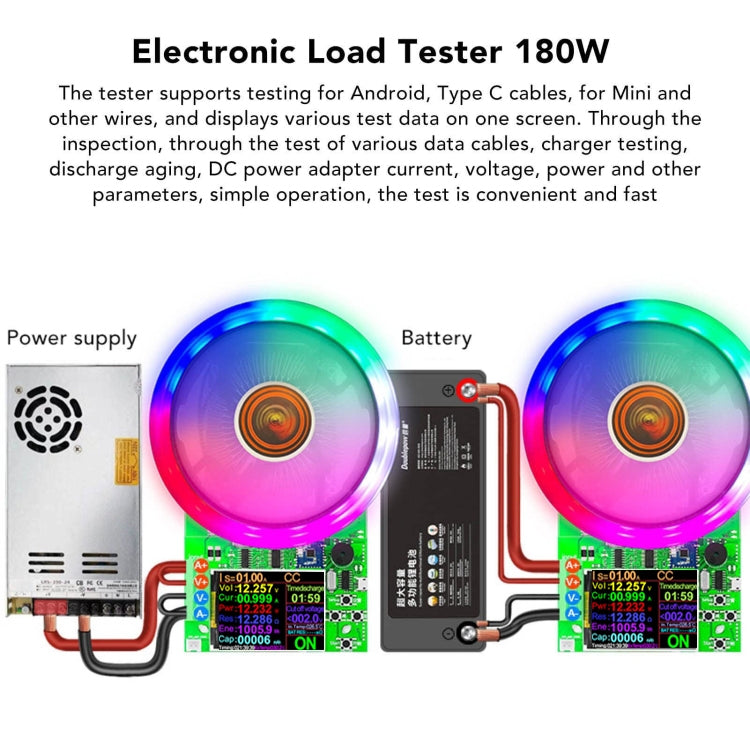

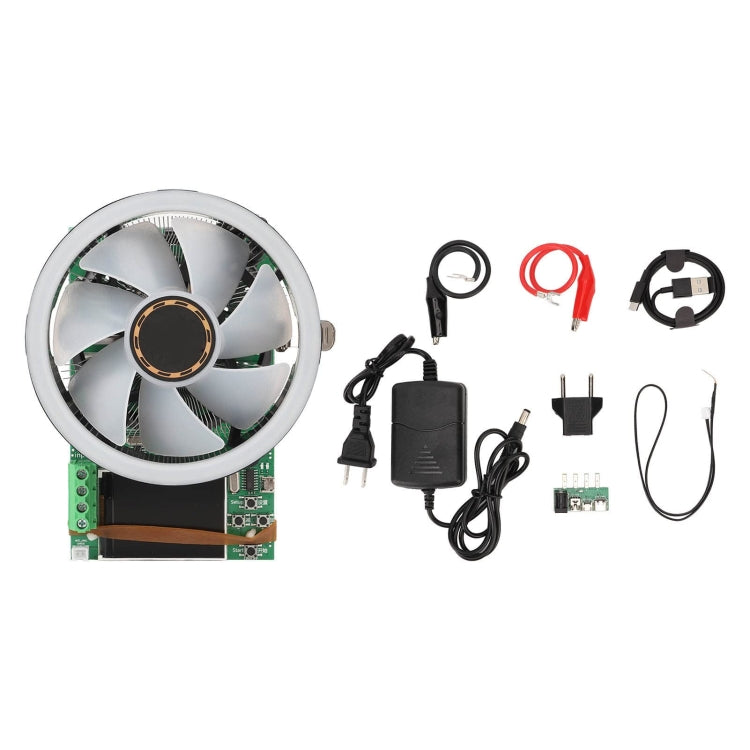

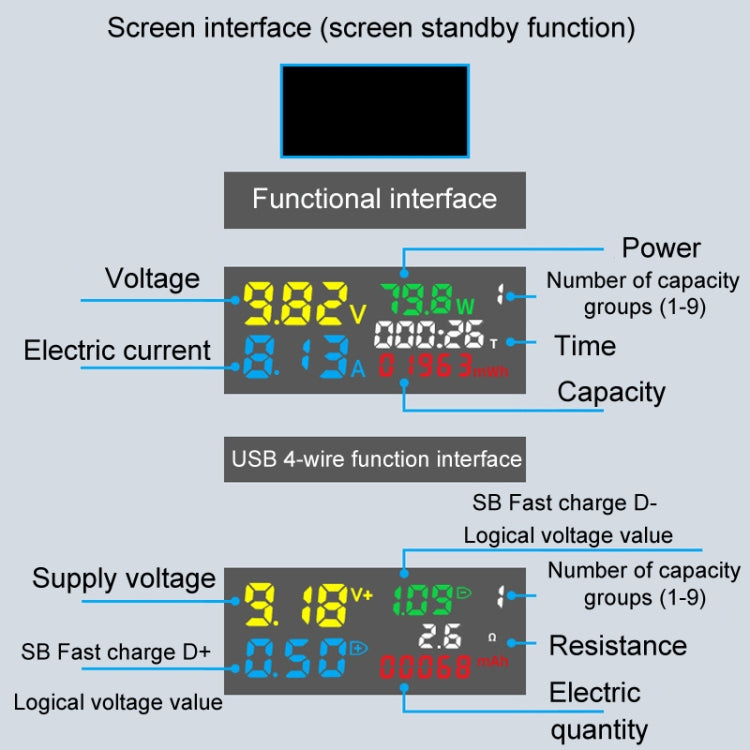

ATORCH 전압 디지털 제어 조절 가능한 정전류 방전 부하 노화 테스터, 미국 플러그

Trustpick

ATORCH 전압 디지털 제어 조절 가능한 정전류 방전 부하 노화 테스터, 미국 플러그

₩81,000 KRW

1. Four operation modes: constant current operation; constant voltage operation; constant power operation; constant resistance operation
2. This time, a flexible input wiring port design is adopted. Users can manually connect different adapters to achieve different measurement functions to extend the functions
3. Automatically generate measurement data reports, stop voltage and time-limited discharge
4. First turn off the load switch "OFF", measure the current battery no-load voltage, and then turn on the load switch "ON" through the setting key. At this time, you can read the internal resistance parameters of the current battery. The internal resistance of this table is calculated by the formula: (no-load voltage-load voltage)/current current=battery internal resistance
5. Long press the setting key, and then short press the setting key when it flashes to switch to time-limited discharge for timing setting to obtain the effect of worry-free discharge aging. The time-limited discharge can be set to count down for any length of 1-99 hours and 59 minutes. When the set time is reached, the discharge will automatically stop. It can be used as a timer to turn off the constant current discharge aging function
Real-time display of internal and external dual temperature measurement data, three intelligent safety protections
6. Test various USB data cables/chargers. First, use a data cable to connect the corresponding interface of the load device, and then use the DC power cable and Android cable to connect to the "Micros input detection port". Then adjust the current by setting the button to detect the voltage drop of the data cable and the performance stability of the charger.
7. Test various DC power adapters, and the 2.4-inch high-definition large color screen displays data clearly.
8. The four-wire wiring method, the voltage measurement is not affected by the voltage drop of the wire, making the voltage measurement more accurate.
9. Easily test various data such as voltage/current/capacity of various lithium batteries/batteries.
10. Long-term 180W load discharge aging test, the temperature is kept at about 50-80 degrees.
11. Adopting intelligent temperature control light effect fan design, built-in large discharge tube, more powerful and more reliable, test the overall capacity of the battery, usage time, aging performance, etc.

Online method:
1. For Apple mobile phone APP: Please search E_test directly in the App Store to download and install, then click the Bluetooth APP icon to open the software, click the Bluetooth icon above the software to enter and select DL24-BLE to connect, and you can realize the remote wireless remote control setting and measurement function of the mobile phone. You can check the discharge status on the mobile phone at any time, various data cleaning can be seen, discharge voltage, current and power curves, etc. (No need to pair Bluetooth separately, just select DL24 directly from the software Bluetooth icon)
2. Applicable to Android mobile phone APP: Scan the QR code on the back of the host to download the corresponding APP software. After installation, open the software and click the Bluetooth icon to enter and directly select DL24-BLE to successfully connect and use (no need to pair Bluetooth separately, just select DL24 directly from the software Bluetooth icon)
3. Computer wired connection APP: After the host is powered on, use the data cable provided to connect to the computer USB port, then install the CH340 serial port driver, and then scan the QR code on the back of the host to download the corresponding APP software. After installation, open the software and select the newly installed serial port model to successfully connect and use. Of course, this APP style with installation method is also compatible with the serial port devices of Bluetooth devices
4. Computer Bluetooth wireless connection APP: First add the Bluetooth device as the serial port device of DL24-SPP on the computer, then scan the QR code on the back of the host to download the corresponding APP software and store it. You can directly open the software and select the newly added Bluetooth serial port model to successfully connect and use it without installation.

Specification:

Package Weight

One Package Weight

0.84kgs / 1.86lb

One Package Size

21cm * 21cm * 15cm / 8.27inch * 8.27inch * 5.91inch

Qty per Carton

4

Carton Weight

4.50kgs / 9.92lb

Carton Size

44cm * 23cm * 32cm / 17.32inch * 9.06inch * 12.6inch

Loading Container

20GP: 823 cartons * 4 pcs = 3292 pcs
40HQ: 1911 cartons * 4 pcs = 7644 pcs

재고 있음

Receives in 7 days.

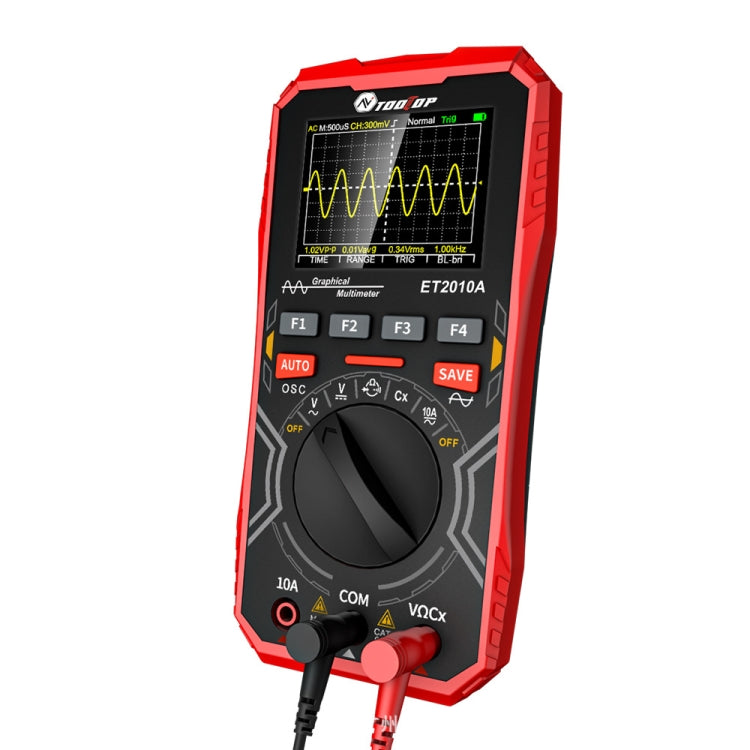

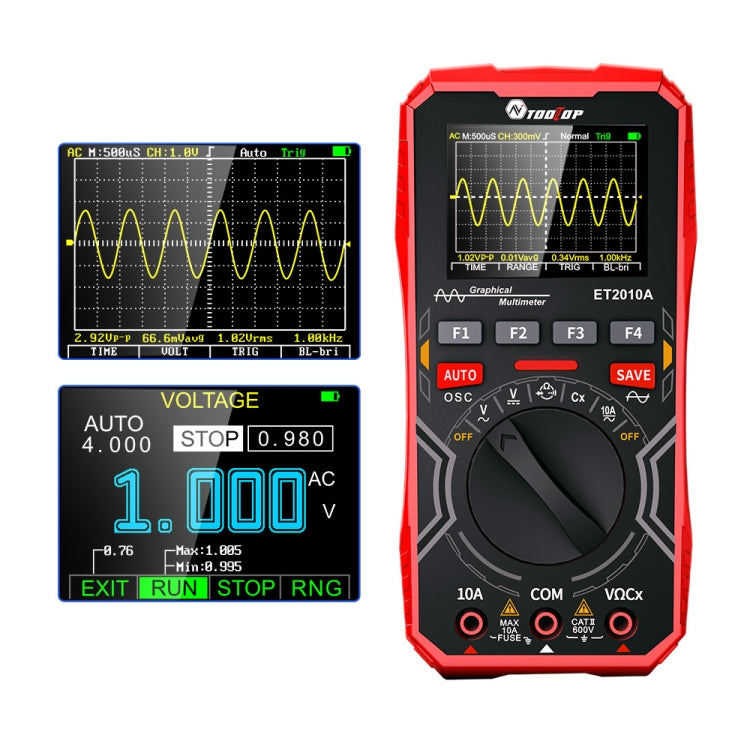

TOOLTOP 2-in-1 DIY 오실로스코프 미니 멀티미터, ET2010A

TOOLTOP

TOOLTOP 2-in-1 DIY 오실로스코프 미니 멀티미터, ET2010A

₩81,000 KRW

재고 있음

Receives in 7 days.

Trustpick

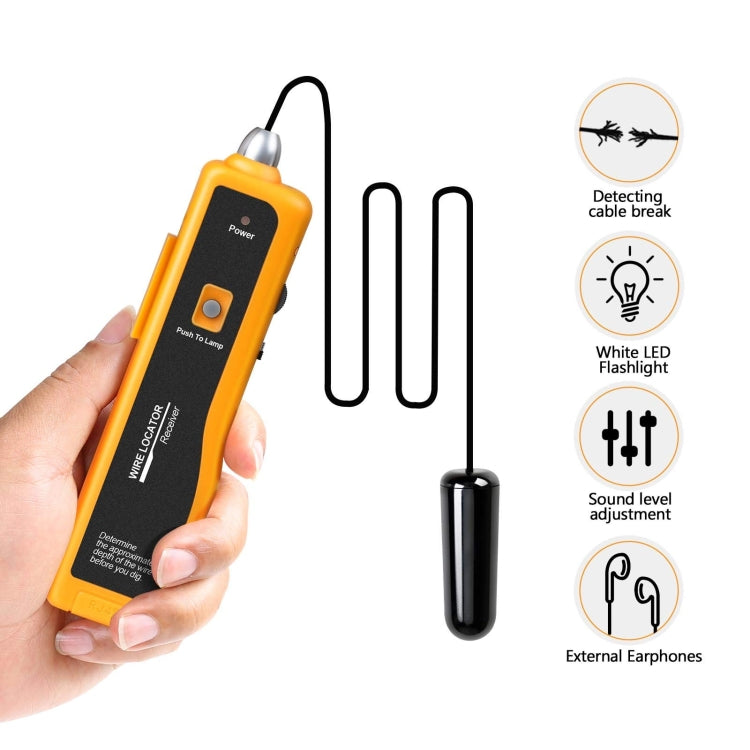

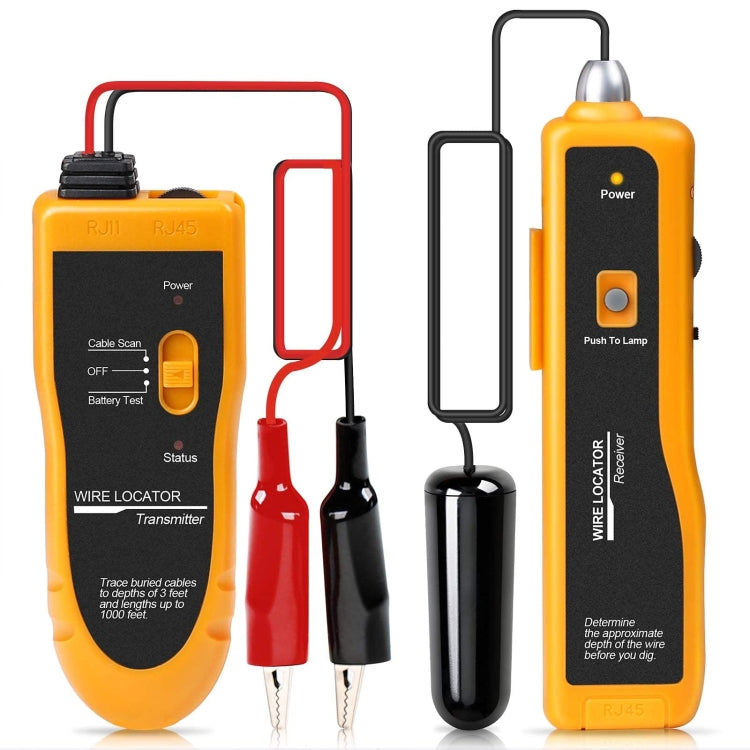

지하 케이블 위치 추적기 케이블 측정기

₩75,000 KRW

재고 있음

Receives in 7 days.

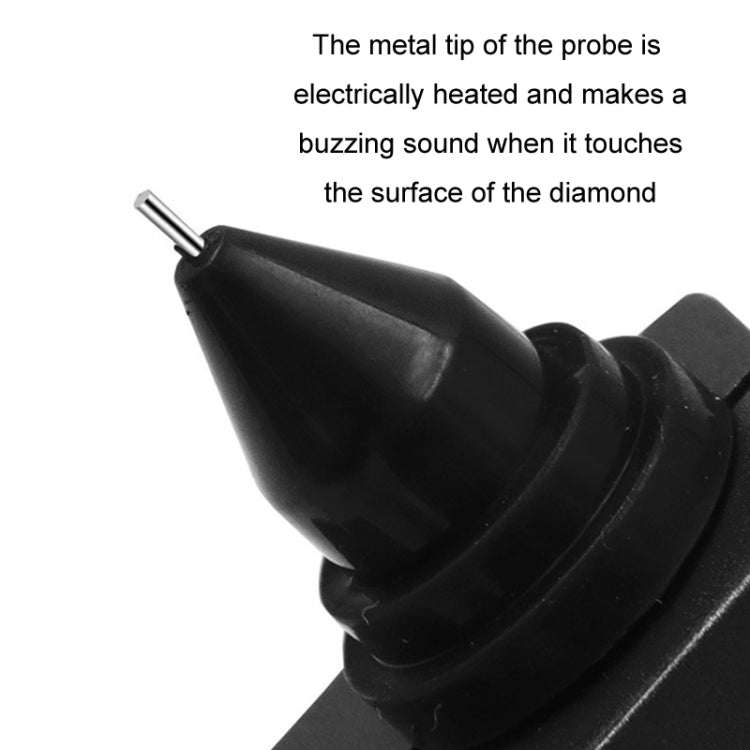

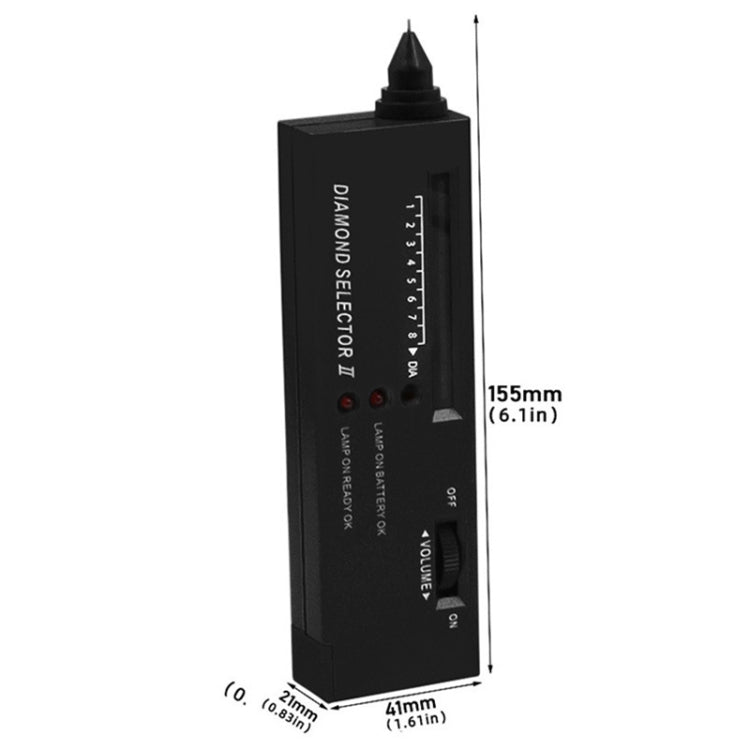

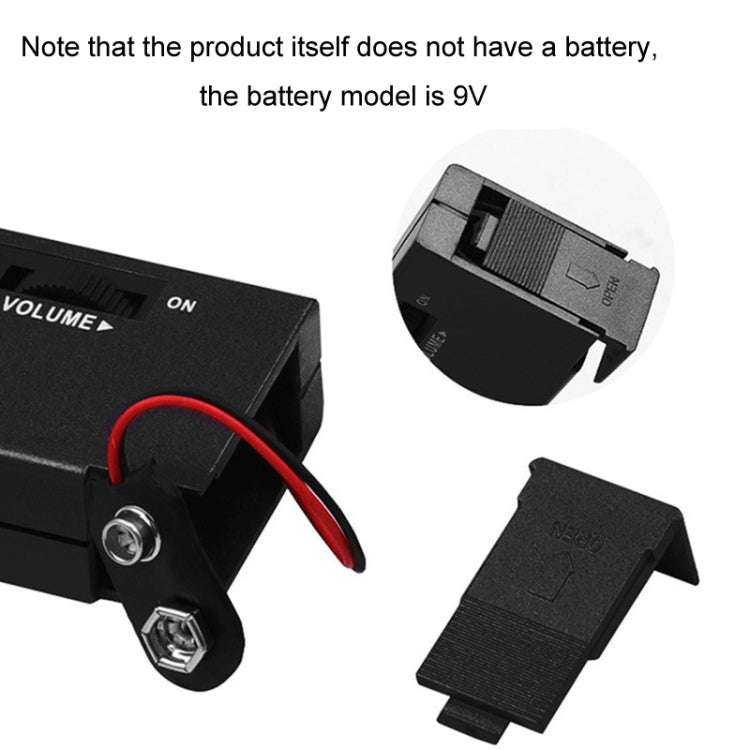

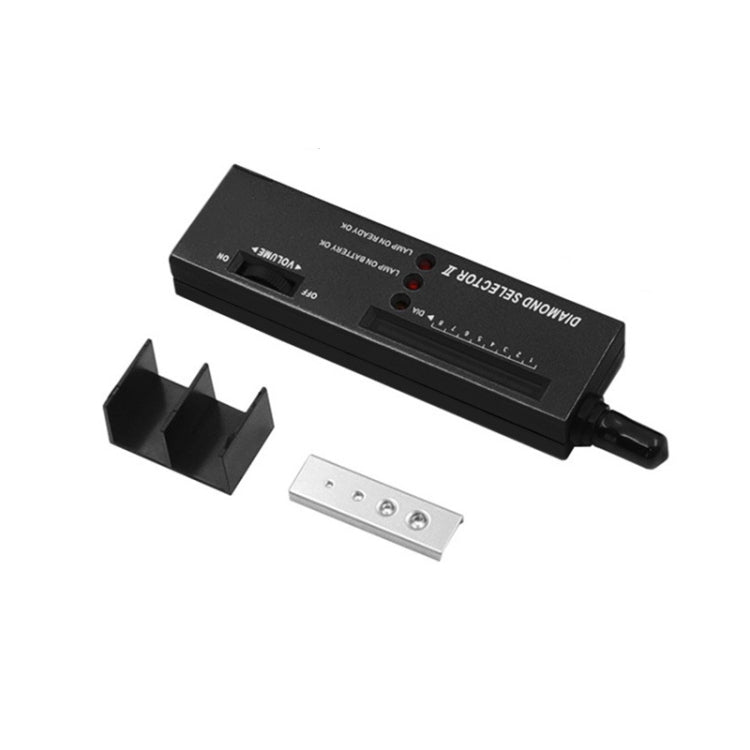

열전도율 측정기 다이아몬드 테스트 펜 결정 경도 식별기, 다이아몬드 테스트 펜

Trustpick

열전도율 측정기 다이아몬드 테스트 펜 결정 경도 식별기, 다이아몬드 테스트 펜

₩10,000 KRW

재고 있음

Receives in 7 days.

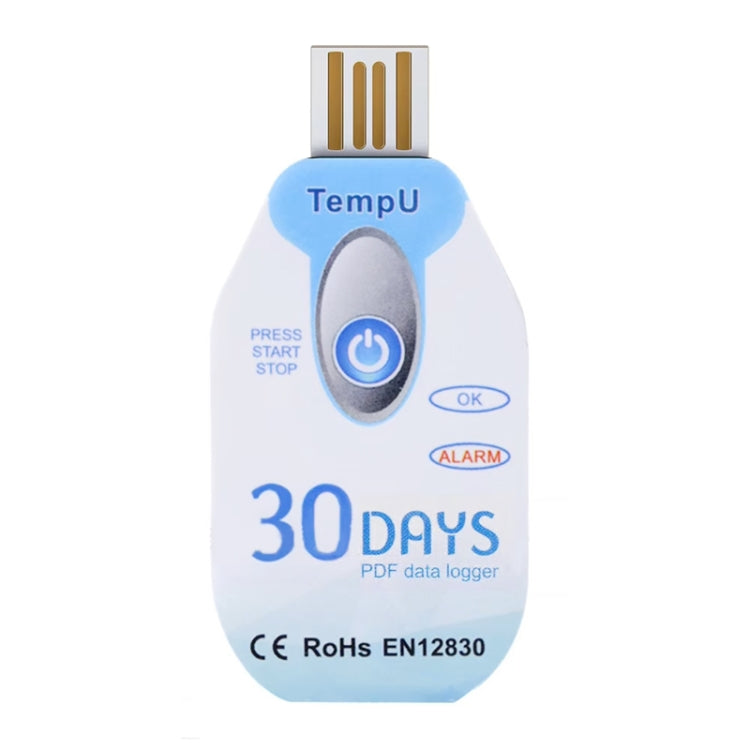

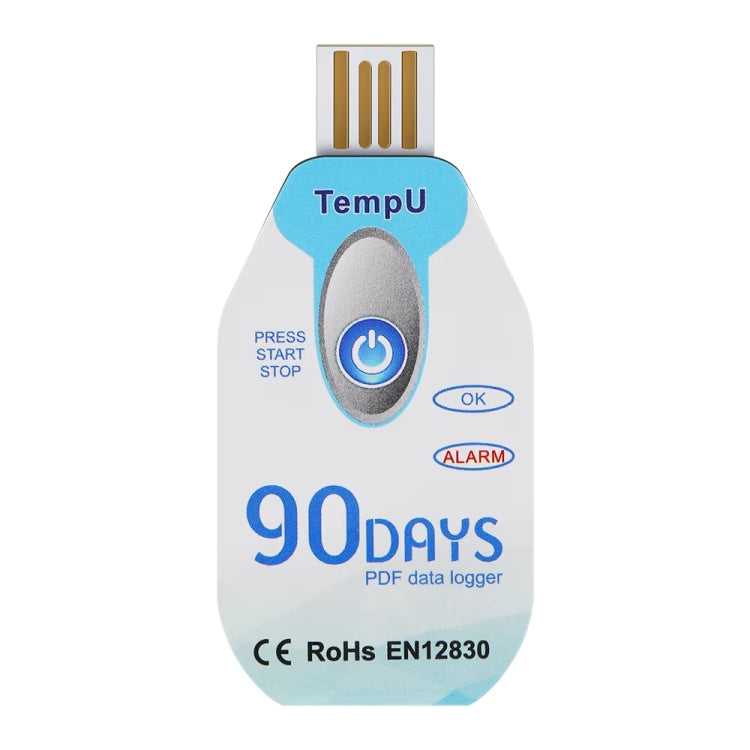

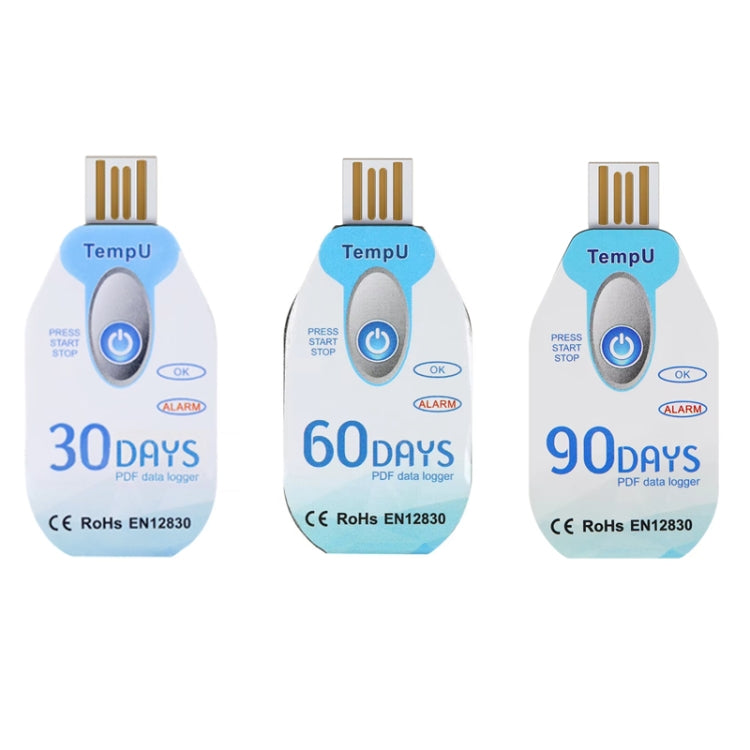

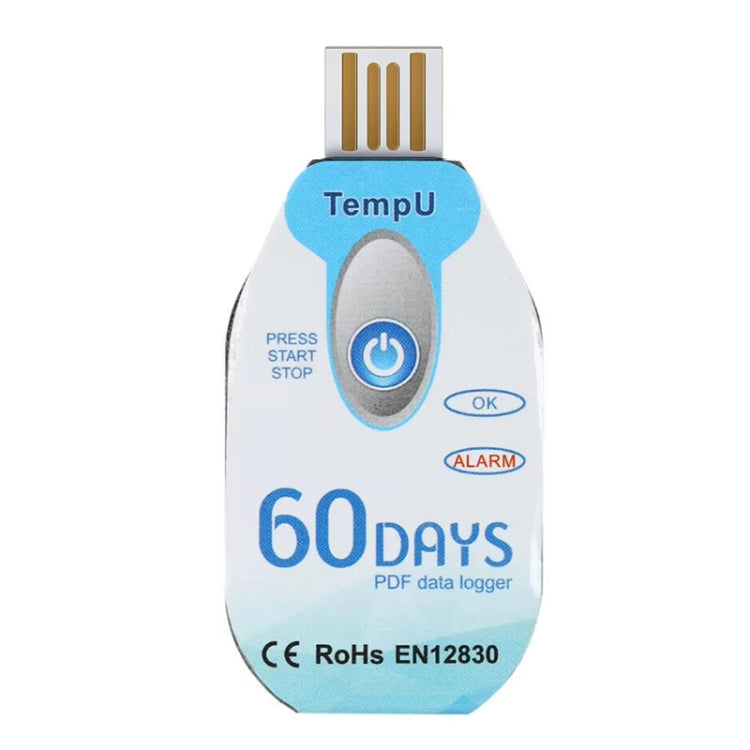

TempU 일회용 온도 기록기 냉장 운송 차량용, 30일, 60일, 90일

TempU

TempU 일회용 온도 기록기 냉장 운송 차량용, 30일, 60일, 90일

₩14,000 KRW

재고 있음

Receives in 7 days.

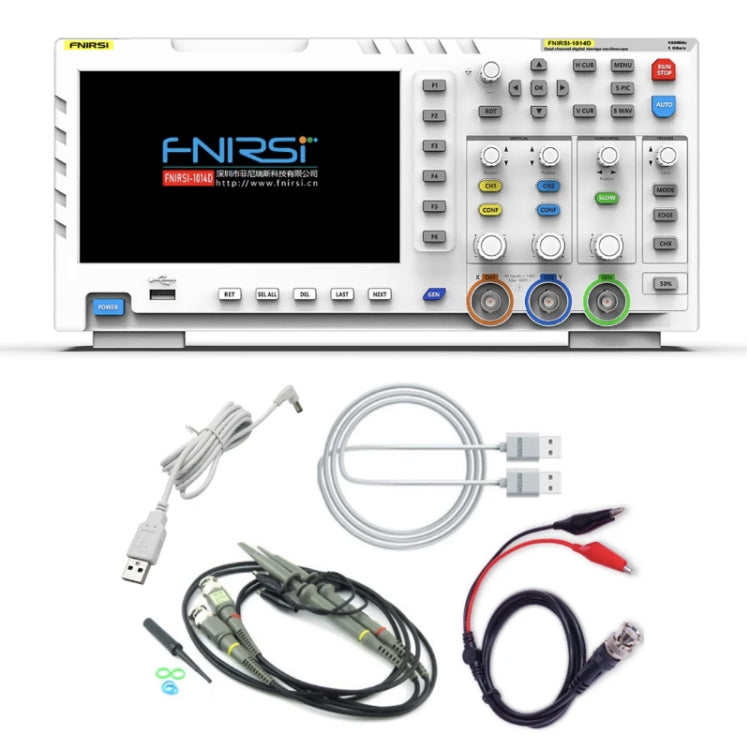

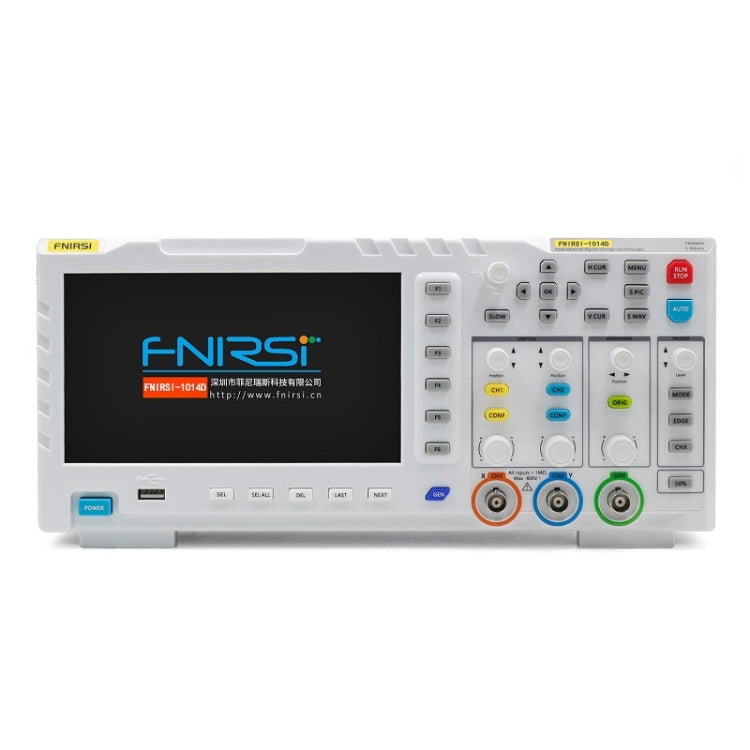

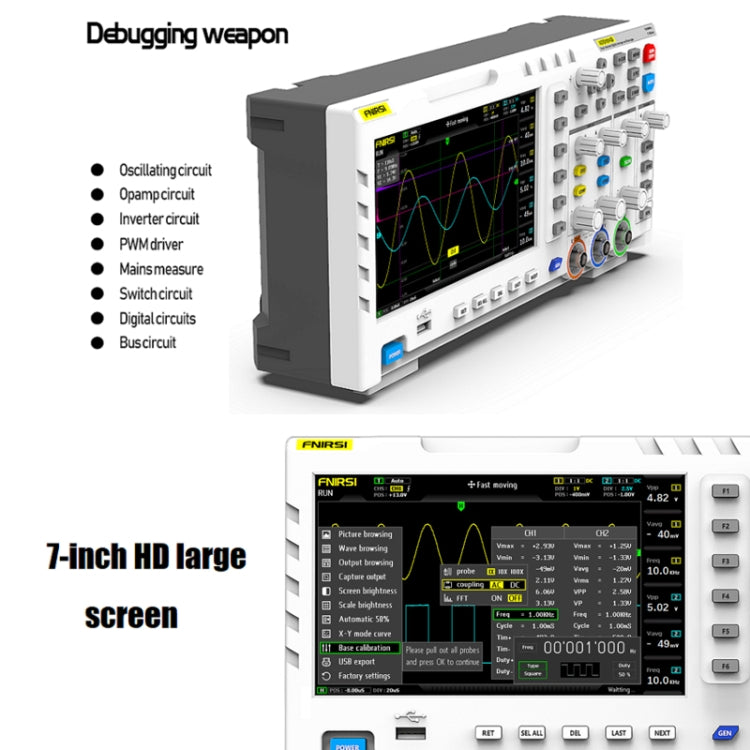

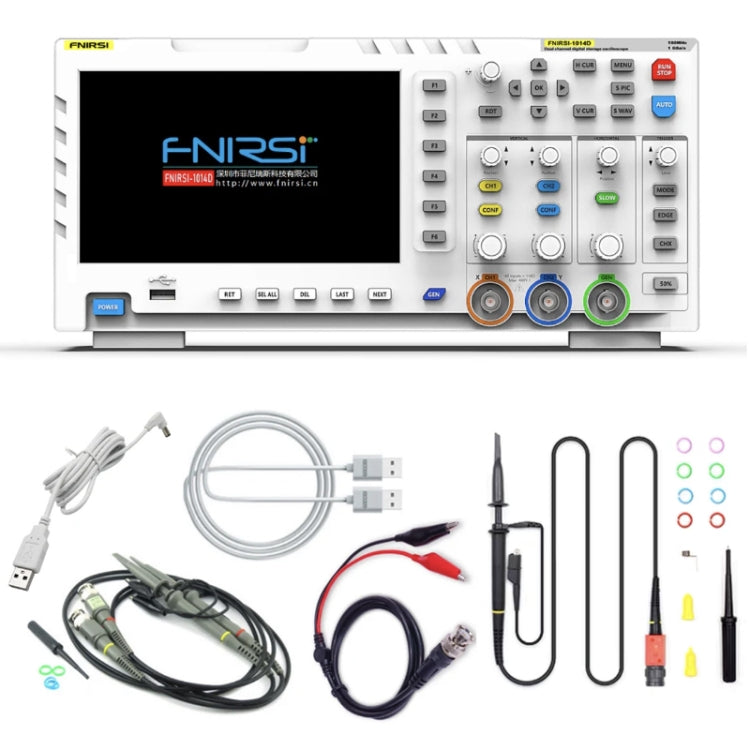

FNIRSI 2-in-1 듀얼 채널 100M 대역폭 디지털 오실로스코프 1GS 샘플링 신호 발생기, EU 플러그, 1014D, 1014D + P4100 프로브

FNIRSI

FNIRSI 2-in-1 듀얼 채널 100M 대역폭 디지털 오실로스코프 1GS 샘플링 신호 발생기, EU 플러그, 1014D, 1014D + P4100 프로브

₩283,000 KRW부터

1. The oscilloscope has a real-time sampling rate of 1GSa/s and an analog bandwidth of 100MHz x 2
2. Complete trigger function (single/normal/automatic), both periodic analog signal and non-periodic digital signal can be used freely
3. Built-in DDS function signal generator and the industrys original chopping output (@2.5vpp), all signal frequency steps are 1Hz, support 14 kinds of standard function signals and a customizable chopping signal, the chopping output device intercepts part or all signals
4. The complex signal measured by the oscilloscope is used as the output signal of the signal generator, which can store up to 1000 custom cut-off signals
5. The built-in high-voltage protection module can withstand continuous voltage up to 400V, so there is no need to worry about the oscilloscope burning accident caused by the probe not moving to the 10x position
7. Large time base scrolling method, which can monitor slow level changes
8. Equipped with an efficient one-key automatic display of measurement waveforms, without cumbersome adjustments
9. 7-inch 800x480 resolution high-definition LCD display
10. Cursor measurement function, when manually reading the amplitude and frequency parameters, there is no need to read the background scale unit and quantity, no need to convert, and directly obtain the peak-to-peak value and frequency. Very convenient screen capture and waveform storage function
10. Built-in 1GB storage space, can store 1000 screenshots + 1000 sets of waveform data, the storage process is simple and fast, save the current waveform with one key
11. Powerful waveform image manager, supports thumbnail browsing, viewing, viewing details, page turning, deletion, and waveform zooming in, zooming out, moving, etc., which is convenient for secondary analysis
12. The fuselage is equipped with a USB interface, which can be connected to a computer to realize the sharing of screenshots and pictures of itself, which is convenient for secondary analysis
13. Graphical display function, which can compare and judge the amplitude, frequency and phase of two groups of signals
14. The FFT viewing function can estimate the harmonic components of the signal
15. Built-in DDS signal generator, supports 12 kinds of function signals
16. For high intelligent decoding algorithm, the encoder has unlimited life, intelligent anti-burn function, 1X can withstand 400V withstand voltage
17. With 100MHz x 2 analog bandwidth and @1GSa/s sampling rate (1X = 5MHz, 10X = 100MHz)
18. High measurement voltage range: 1X can measure 0~40V, 10X can measure 0~400V
19. Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period
20. Cursor measurement function: convenient for manual measurement of period, frequency and voltage =
21. Perfect trigger function (single, normal, automatic), freeze waveform display at any time (pause function)
22. With screen brightness adjustment function and background grid brightness adjustment function, easy to carry
23. Material: ABS
24. Analog log bandwidth: 100MHz x 2
25. Number of channels: 2 channels
26. Real-time sampling rate: 1GSa/s
27. Vertical sensitivity: 50 mV/div ~ 500 V/div
28. Horizontal time base range: 50S/div～10nS/div
29. Test voltage: 40 V (1X probe), 400 V (10X probe)
30. Storage depth: 240Kbit
31. Input resistance: 1 milliohm
32. ADC precision: 8bits
33. Coupling method: AC/DC
34. Trigger mode: single, normal, automatic
35. Trigger edge: rising edge/falling edge
36. External trigger voltage: 0~40 V
37. Expansion port: USB image export

Packing list:
FNIRSI-1014D Oscilloscope host x 1
Matched 100MHz probes (1X and 10X) x 2
Clip x 1
EU power adapter x 1
USB cable x 1
English user manual x 1
P4100 probe (optional) x 1

Specification:

Package Weight

One Package Weight

1.70kgs / 3.76lb

One Package Size

37cm * 20cm * 13cm / 14.57inch * 7.87inch * 5.12inch

Qty per Carton

2

Carton Weight

4.50kgs / 9.92lb

Carton Size

39cm * 22cm * 28cm / 15.35inch * 8.66inch * 11.02inch

Loading Container

20GP: 1110 cartons * 2 pcs = 2220 pcs
40HQ: 2576 cartons * 2 pcs = 5152 pcs

재고 있음

Receives in 7 days.

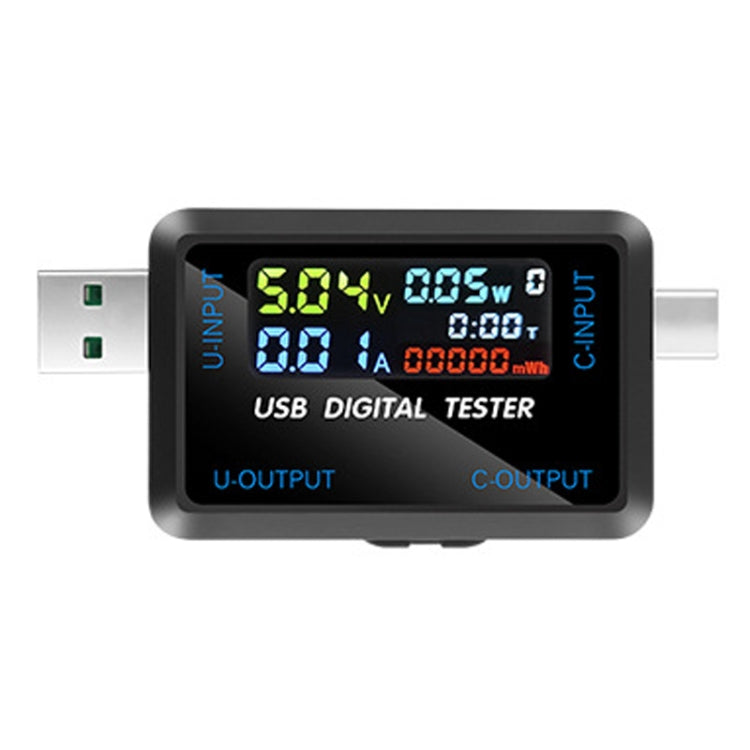

6527-Q 다기능 디지털 전압 및 전류계 휴대용 용량 테스터, 6527-Q

Trustpick

6527-Q 다기능 디지털 전압 및 전류계 휴대용 용량 테스터, 6527-Q

₩13,000 KRW

재고 있음

Receives in 7 days.

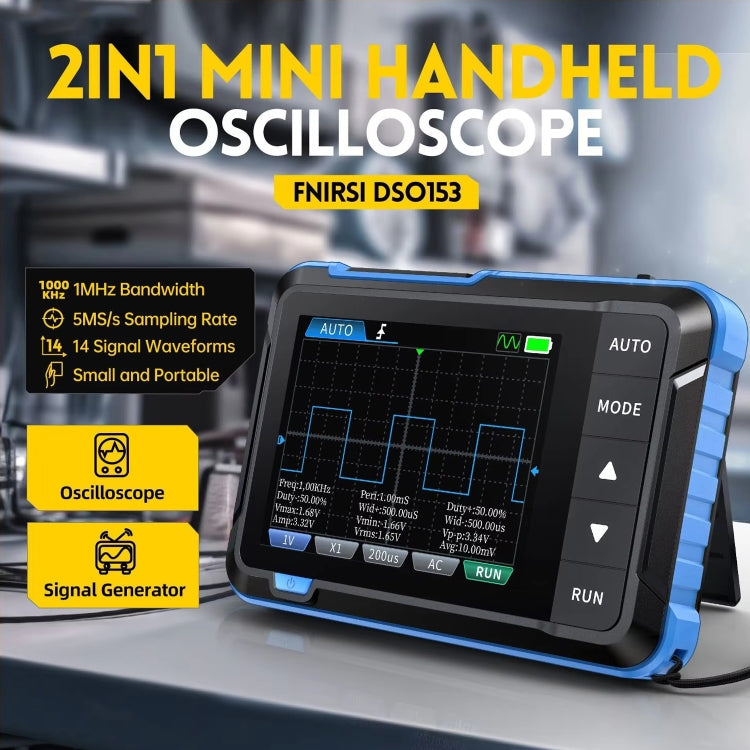

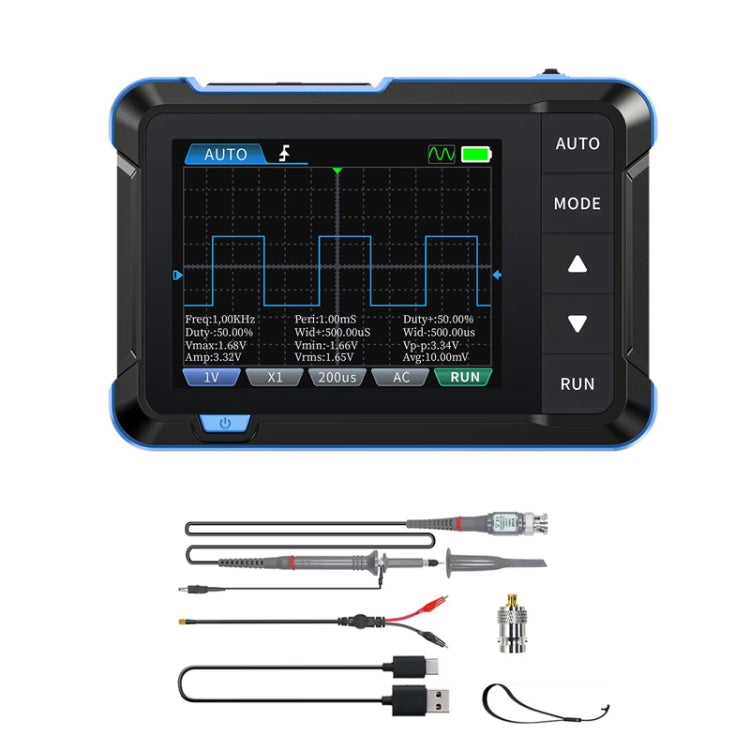

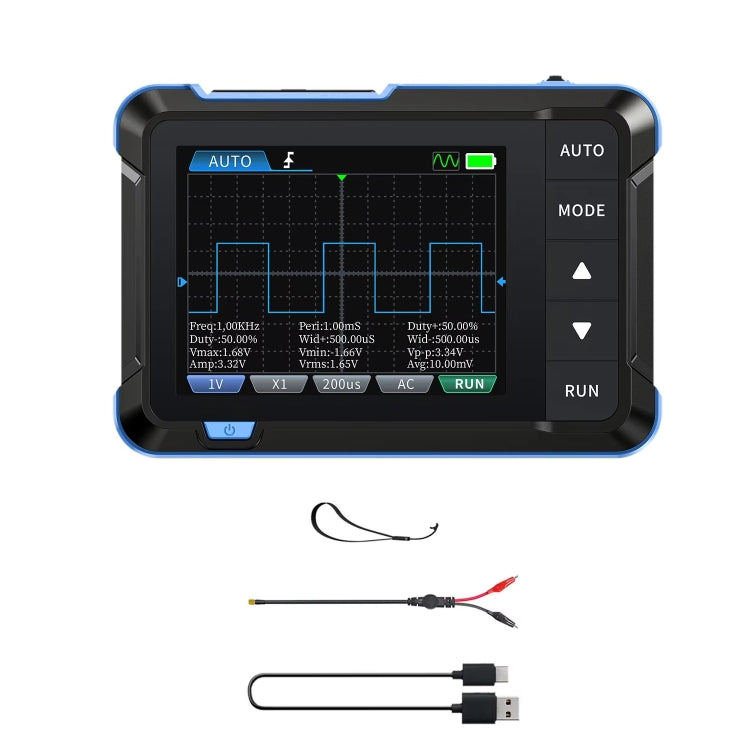

FNIRSI 2-in-1 미니 휴대용 디지털 오실로스코프 신호 발생기, 표준, 업그레이드

FNIRSI

FNIRSI 2-in-1 미니 휴대용 디지털 오실로스코프 신호 발생기, 표준, 업그레이드

₩67,000 KRW부터

재고 있음

Receives in 7 days.

FNIRSI

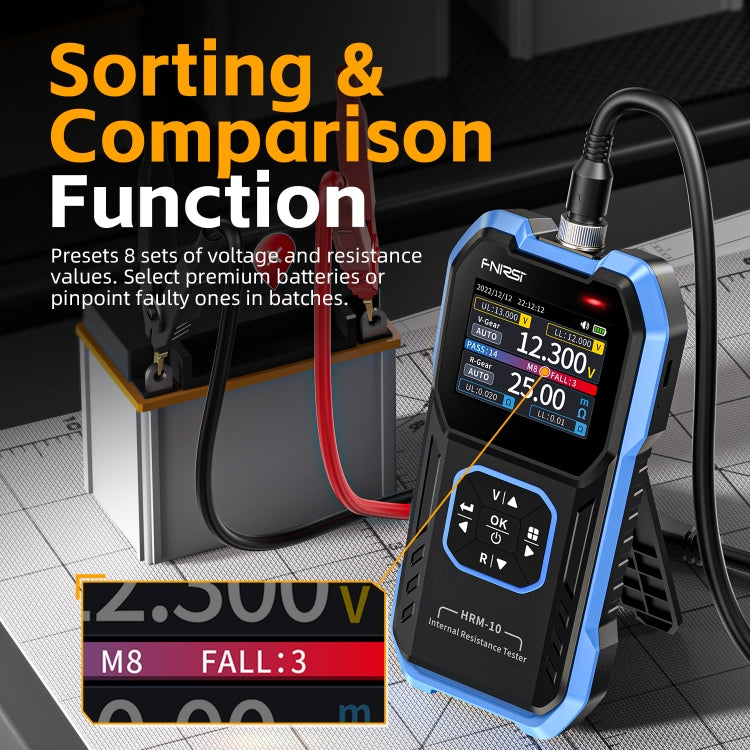

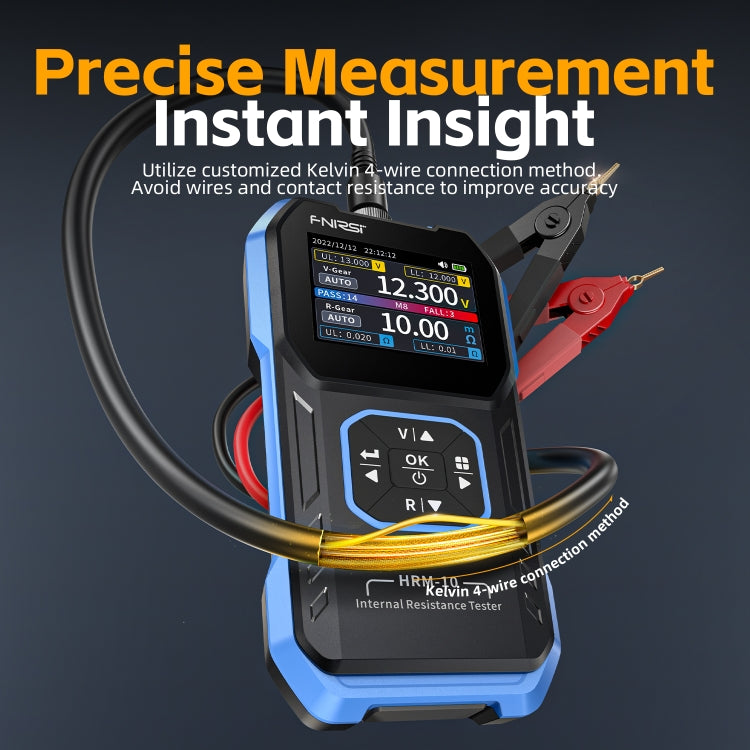

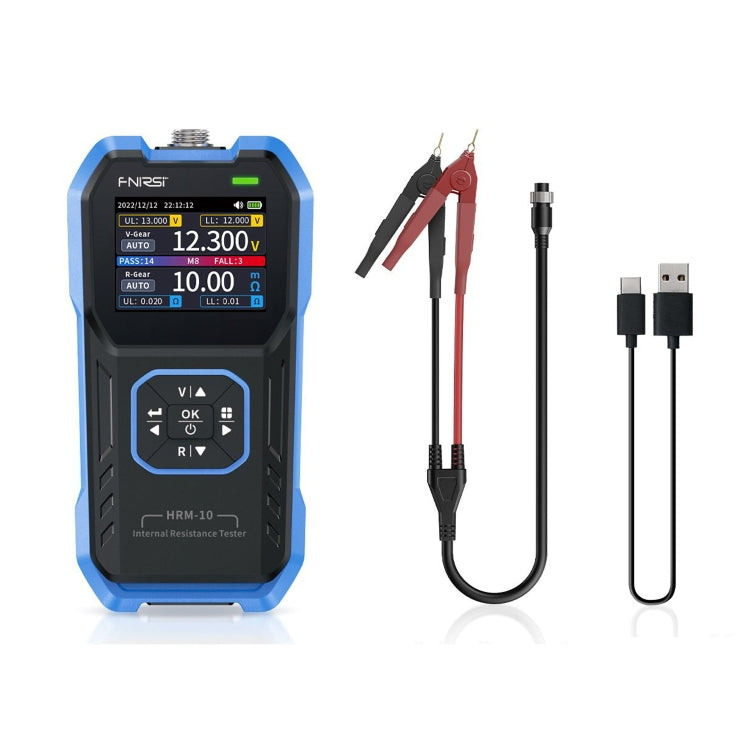

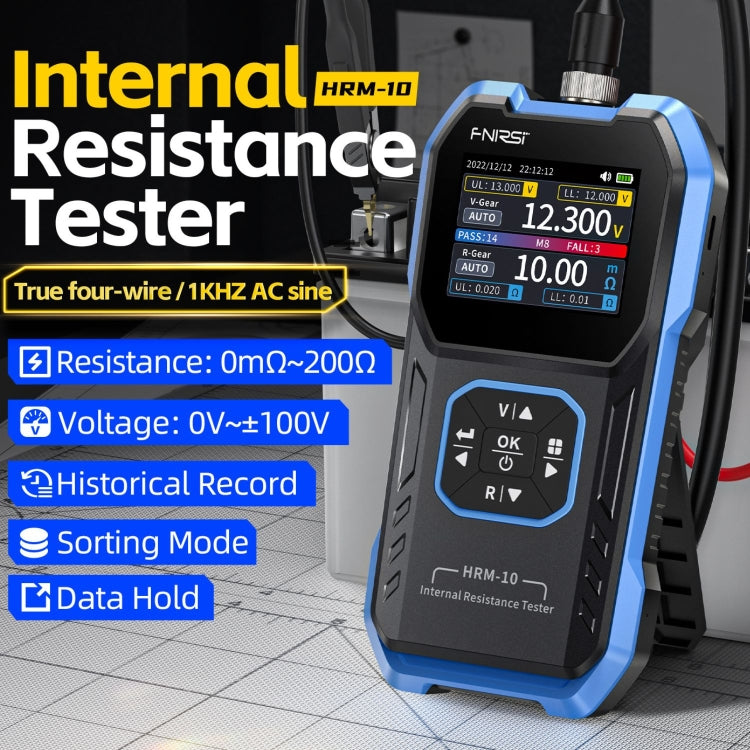

FNIRSI 18650 리튬 배터리 내부 저항 전압 측정기

₩88,000 KRW

재고 있음

Receives in 7 days.

FNIRSI

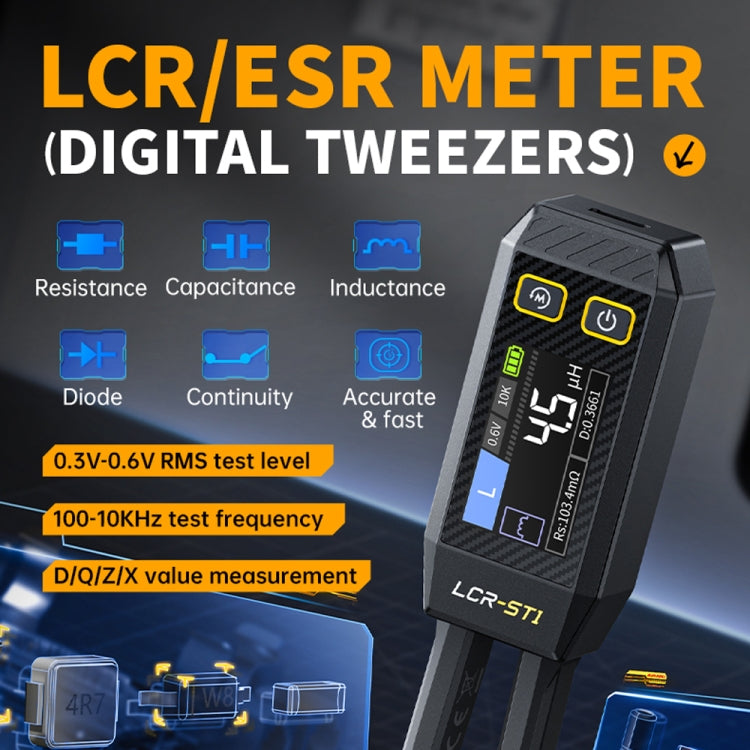

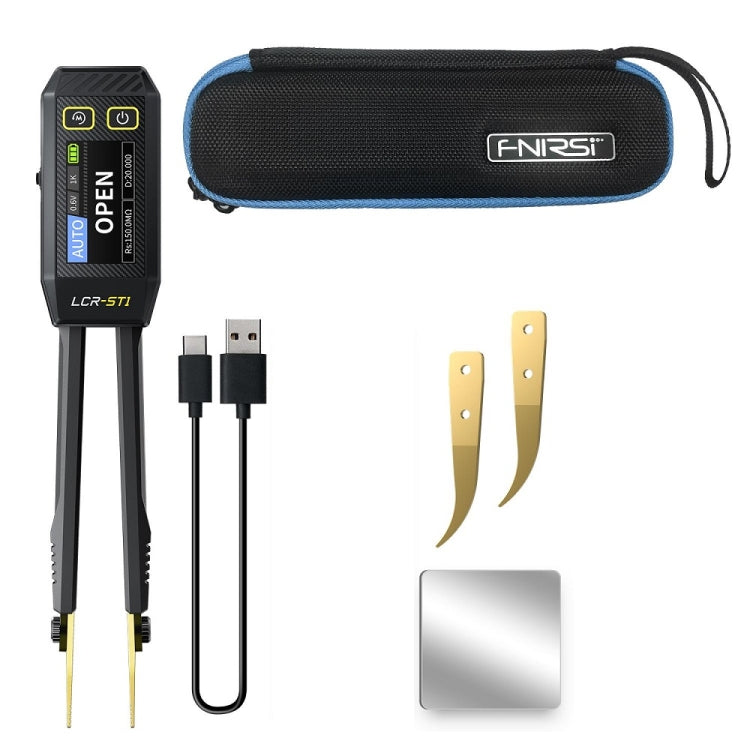

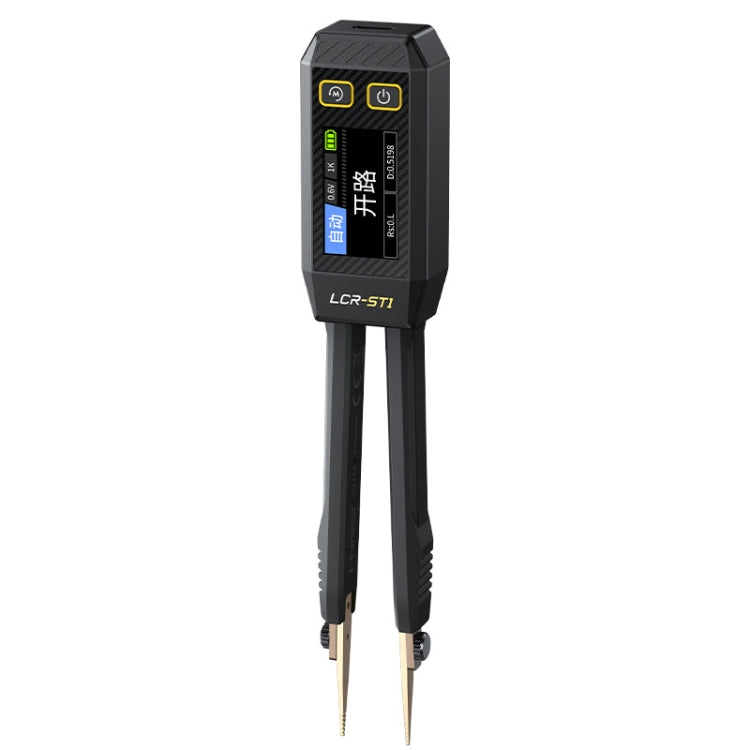

FNIRSI 디지털 핀셋 저항기 커패시터 부품 테스트 멀티미터

₩55,000 KRW

재고 있음

Receives in 7 days.

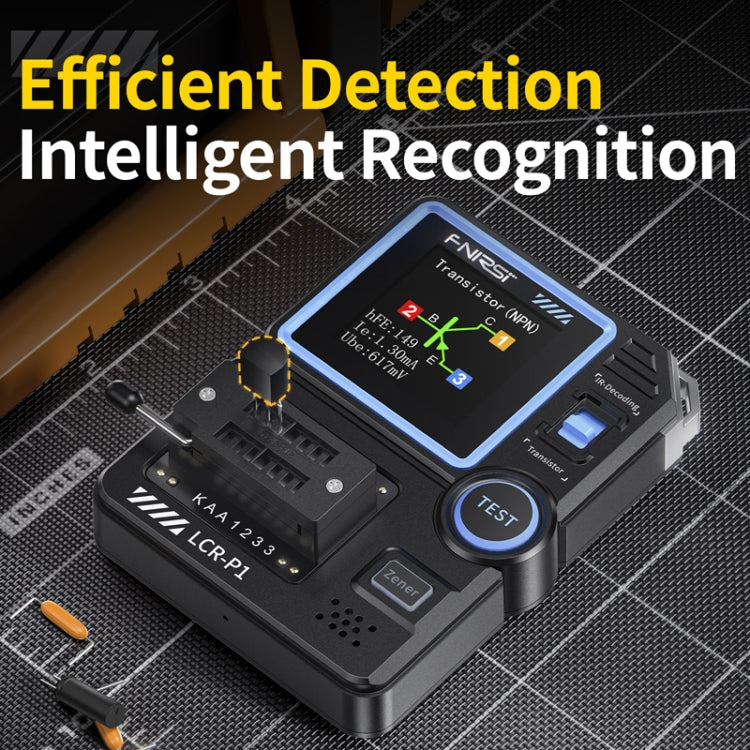

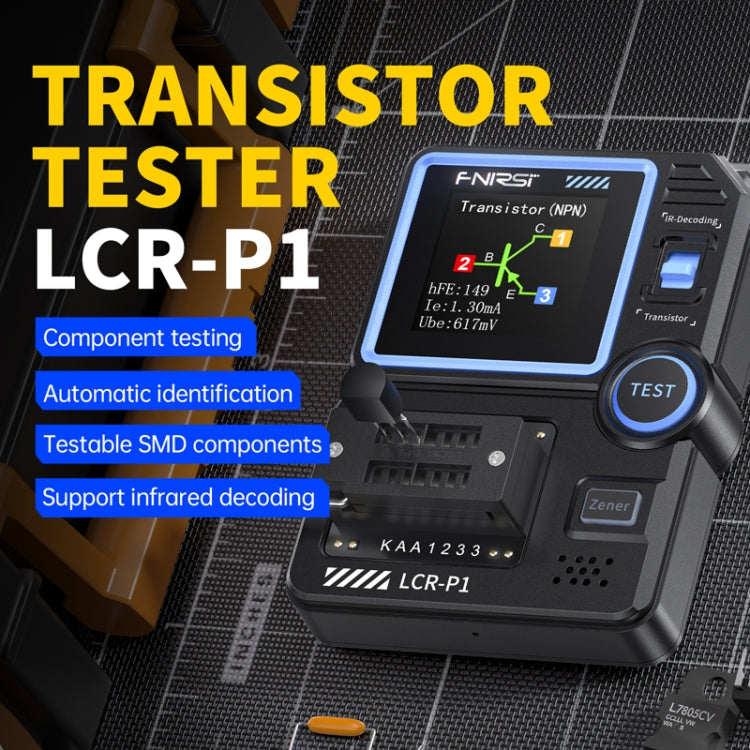

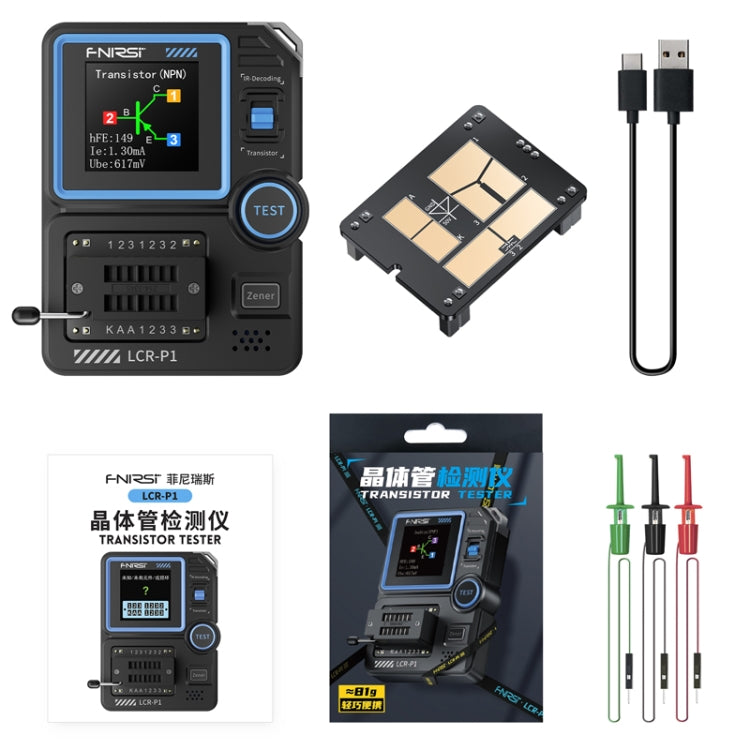

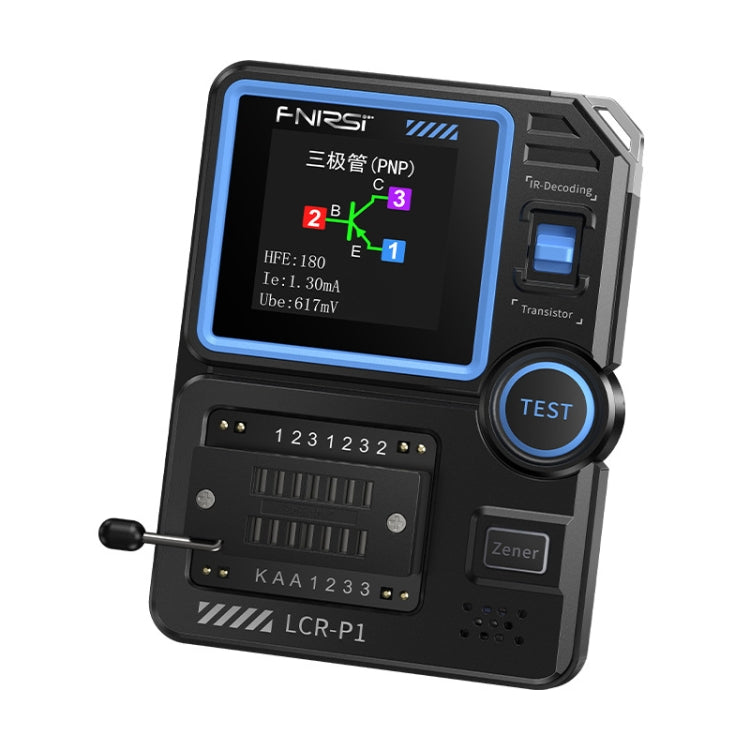

FNIRSI LCR-P1 트랜지스터 테스터 다기능 전자 부품 검사 도구, LCR-P1

FNIRSI

FNIRSI LCR-P1 트랜지스터 테스터 다기능 전자 부품 검사 도구, LCR-P1

₩54,000 KRW

재고 있음

Receives in 7 days.

HABOTEST

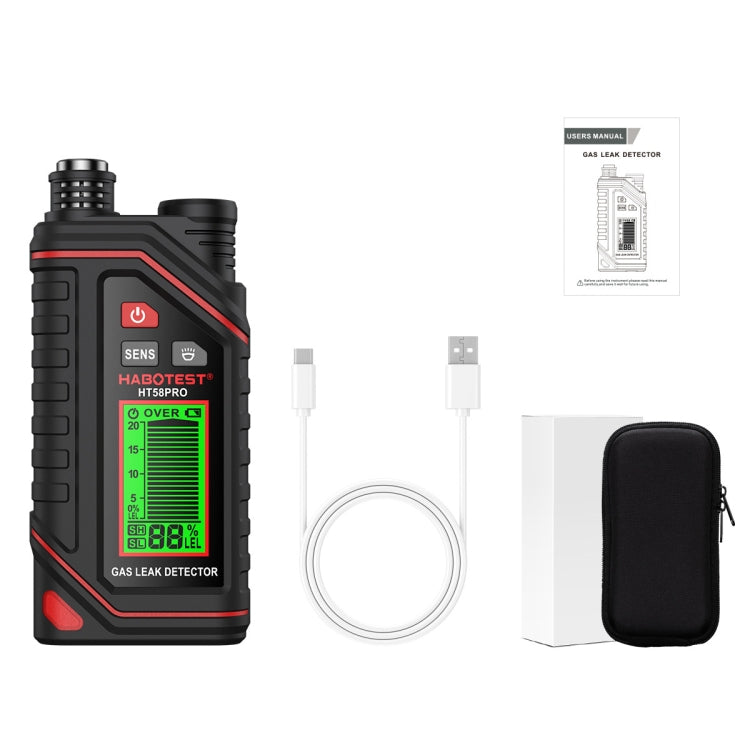

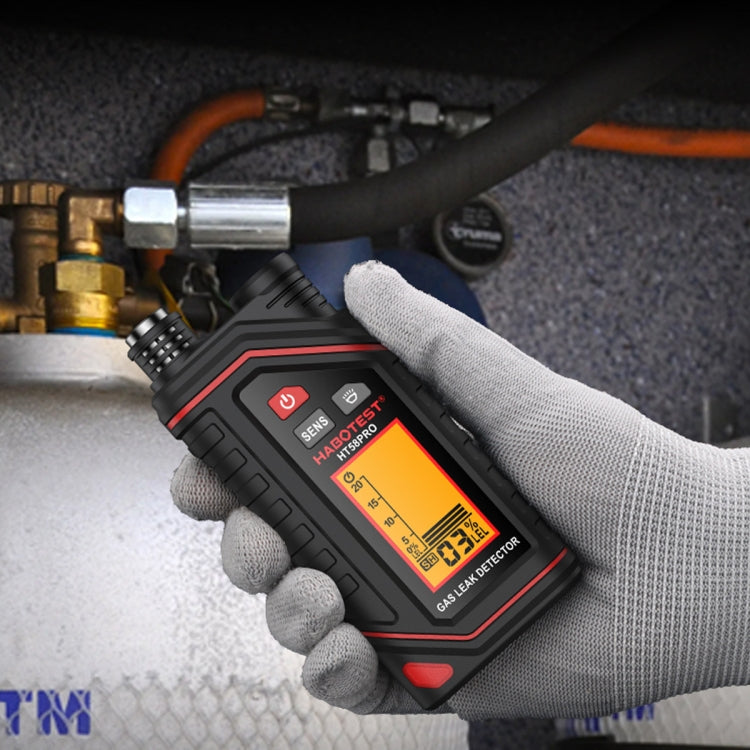

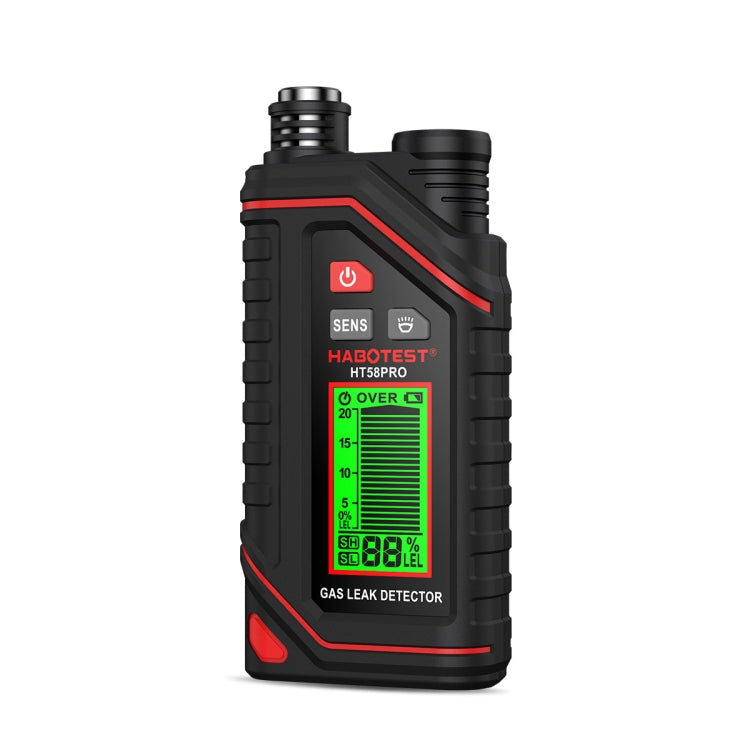

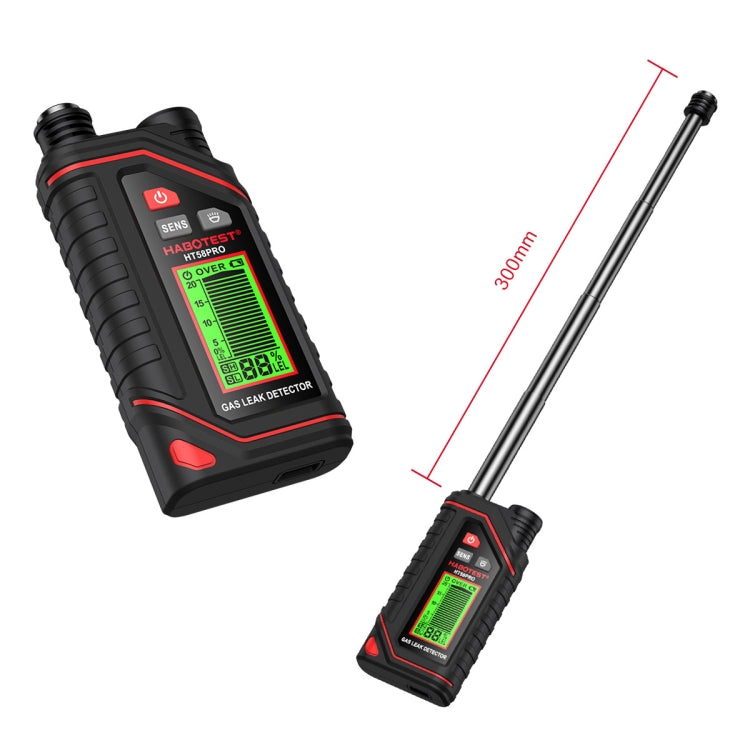

HABOTEST 휴대용 충전식 가스 탐지기, HT629

₩55,000 KRW

재고 있음

Receives in 7 days.

HABOTEST

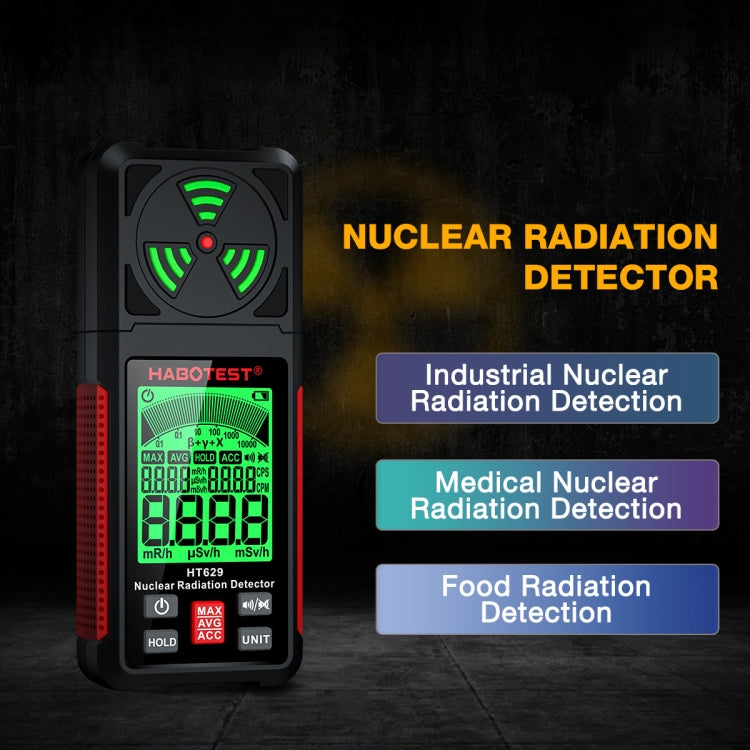

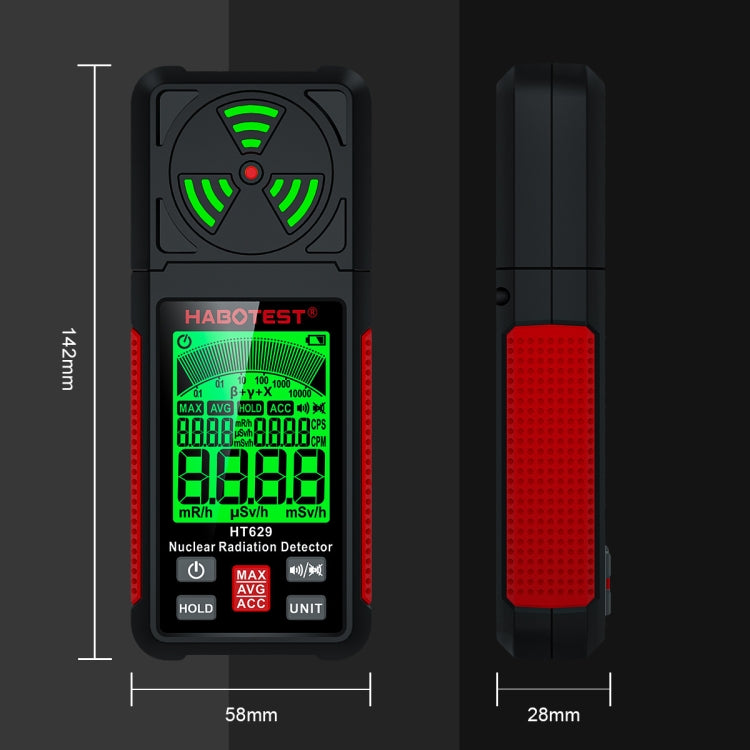

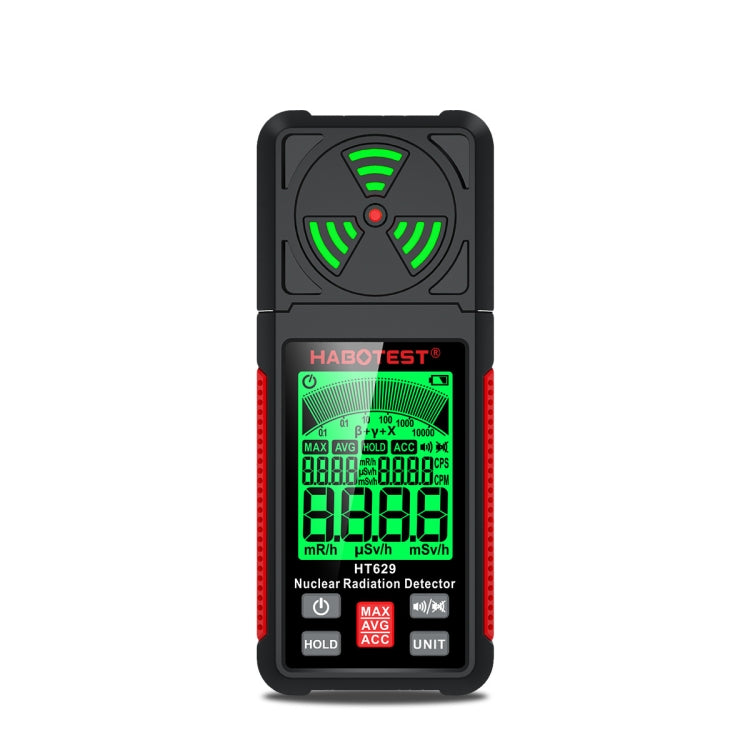

HABOTEST 핵 방사능 오염 방사성 대리석 탐지기

₩114,000 KRW

재고 있음

Receives in 7 days.

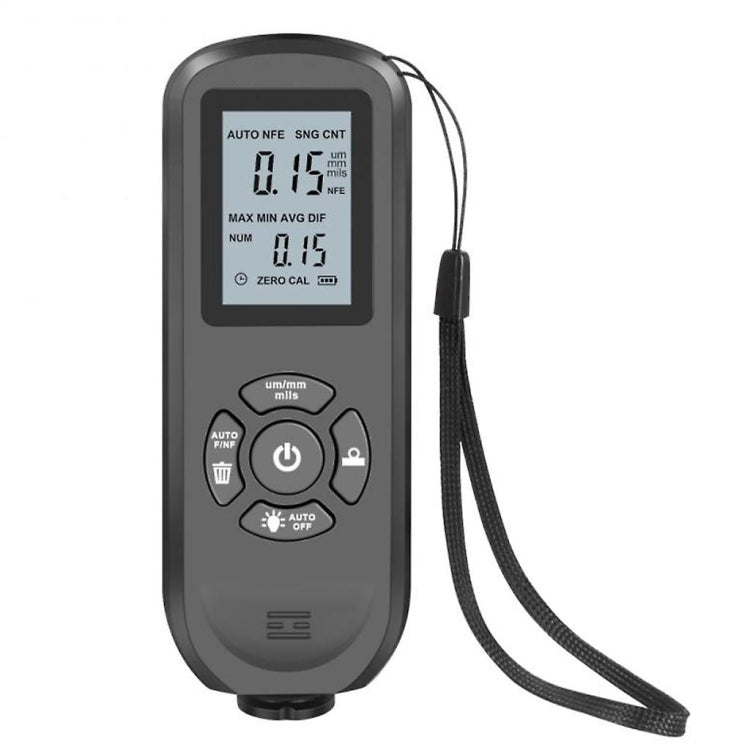

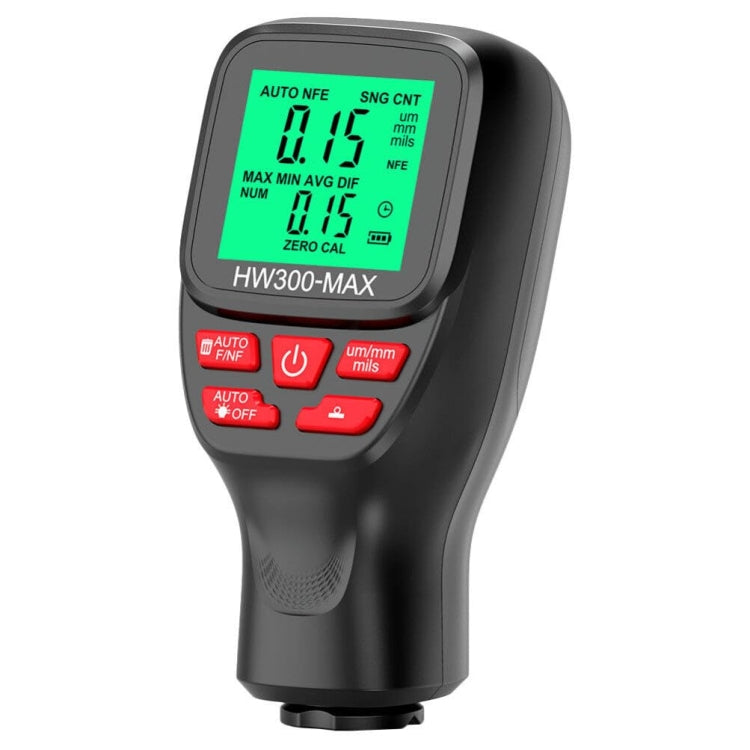

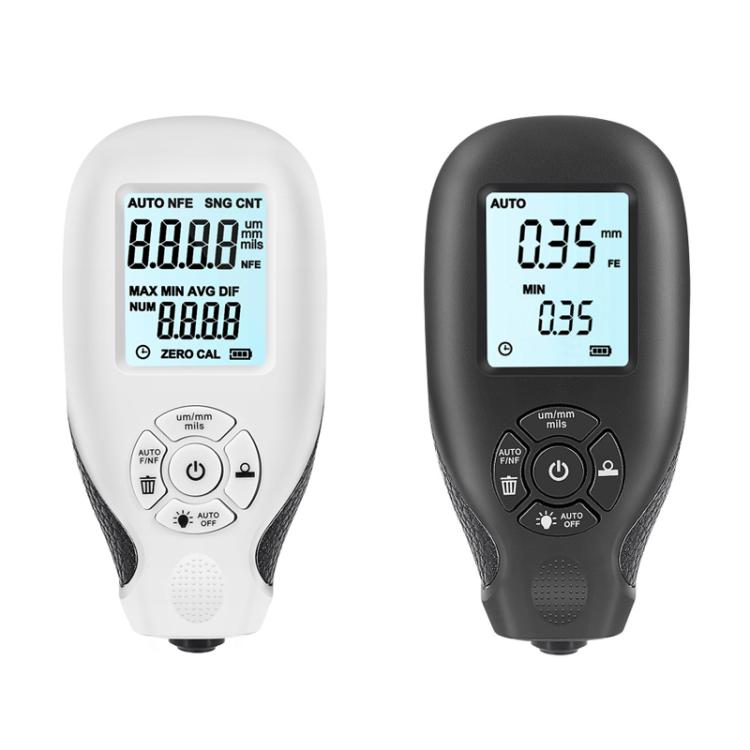

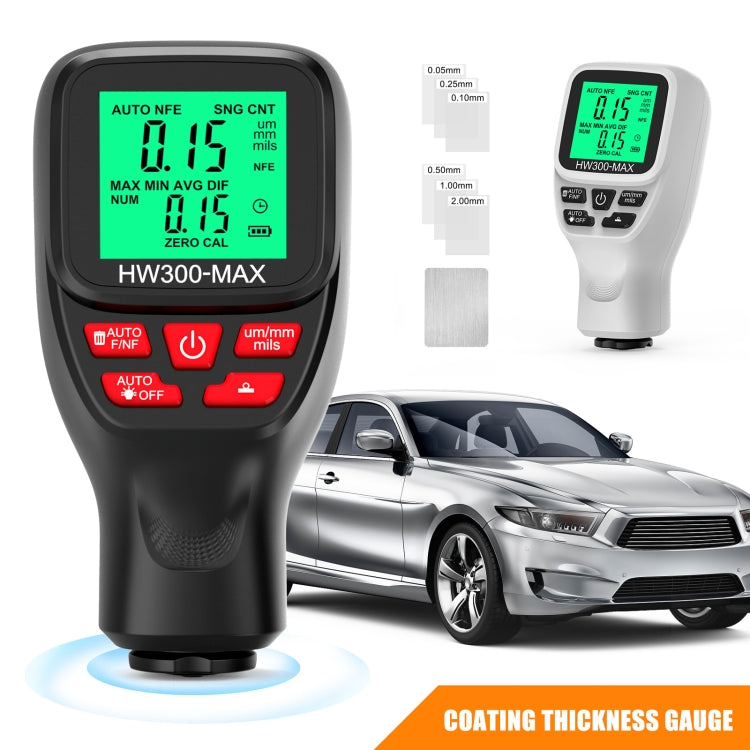

HW300-MAX 코팅 두께 게이지 미끄럼 방지 페인트 필름 테스터, 흰색, 검정색

Trustpick

HW300-MAX 코팅 두께 게이지 미끄럼 방지 페인트 필름 테스터, 흰색, 검정색

₩24,000 KRW

재고 있음

Receives in 7 days.

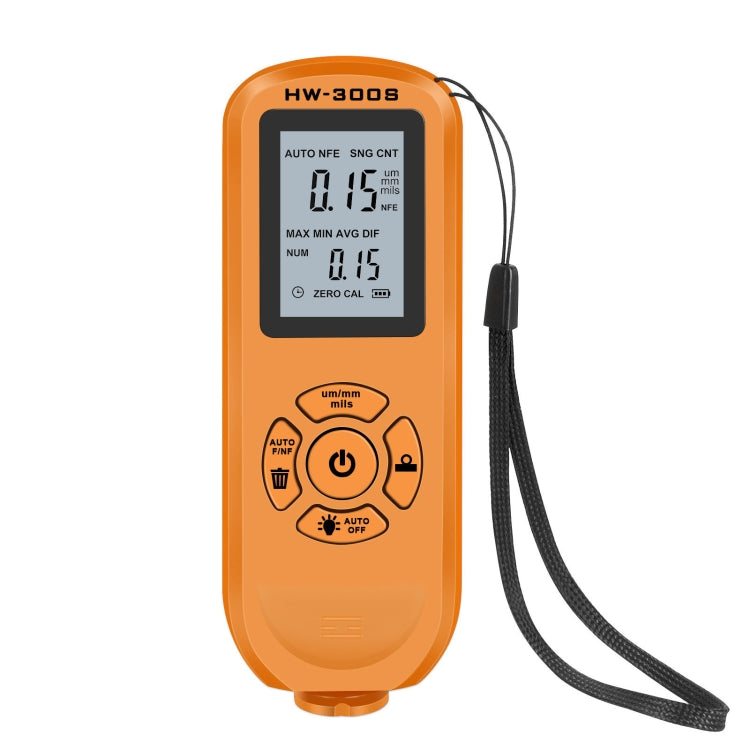

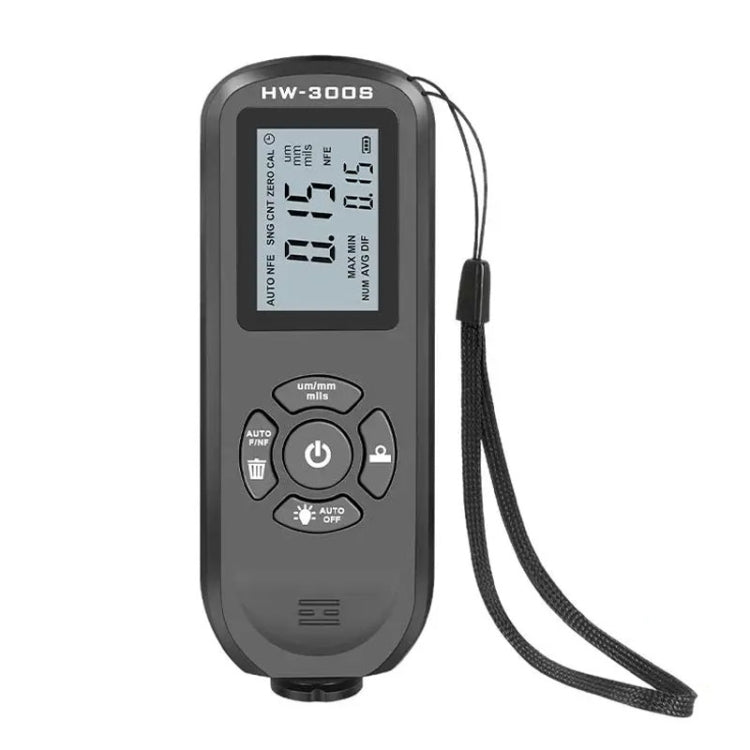

HW-300S 고정밀 코팅 두께 게이지 미끄럼 방지 페인트 필름 게이지, 주황색 가로 화면, 주황색 세로 화면, 검정색 가로 화면, 검정색 세로 화면

Trustpick

HW-300S 고정밀 코팅 두께 게이지 미끄럼 방지 페인트 필름 게이지, 주황색 가로 화면, 주황색 세로 화면, 검정색 가로 화면, 검정색 세로 화면

₩23,000 KRW

재고 있음

Receives in 7 days.

BENETECH

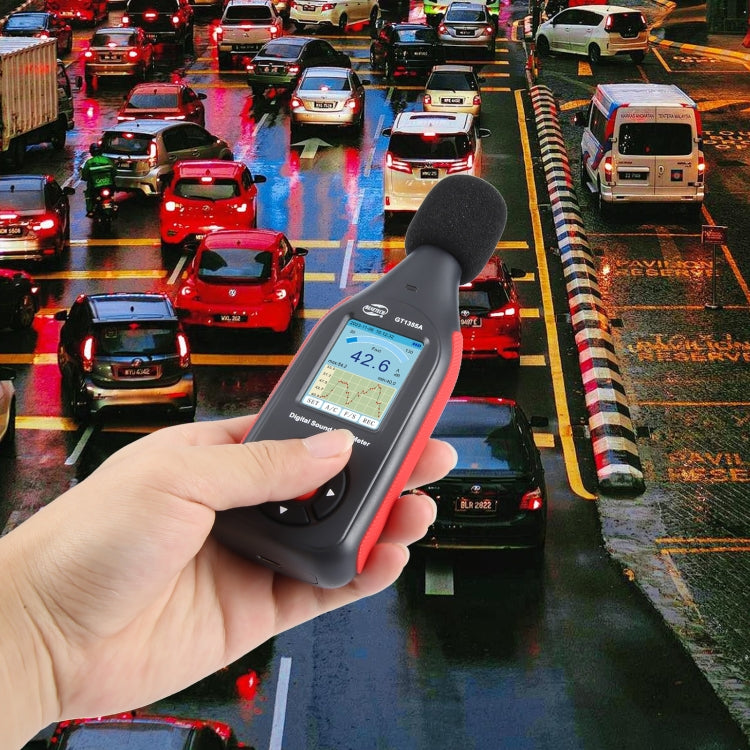

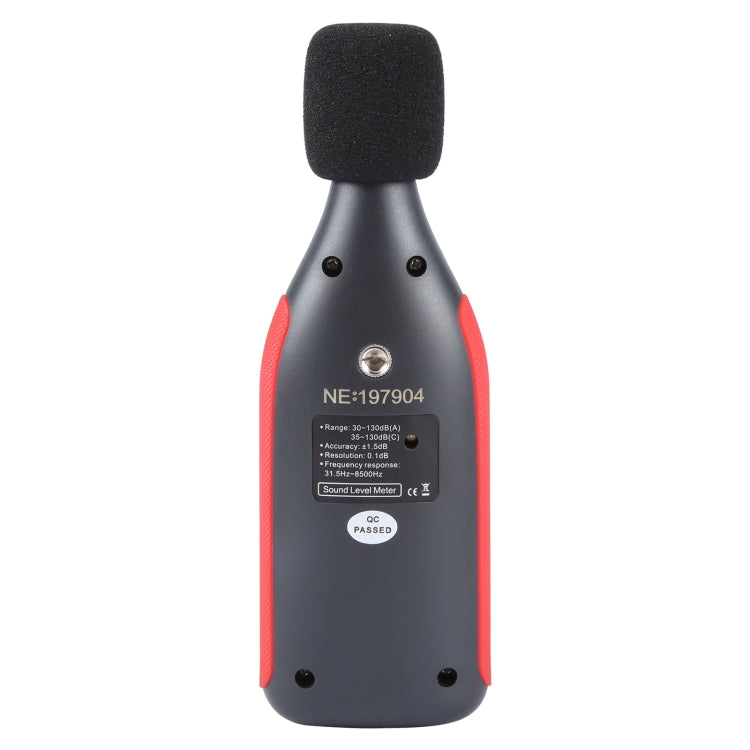

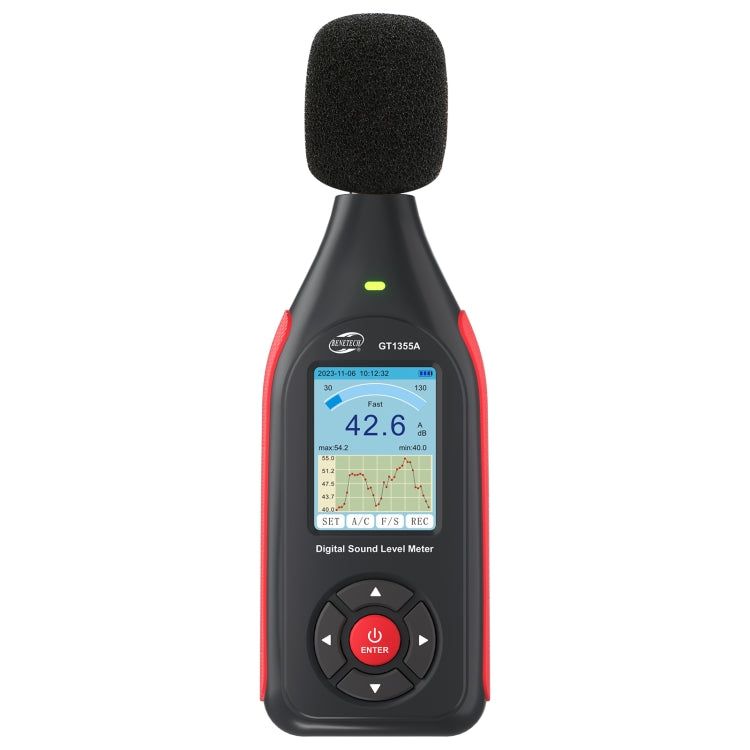

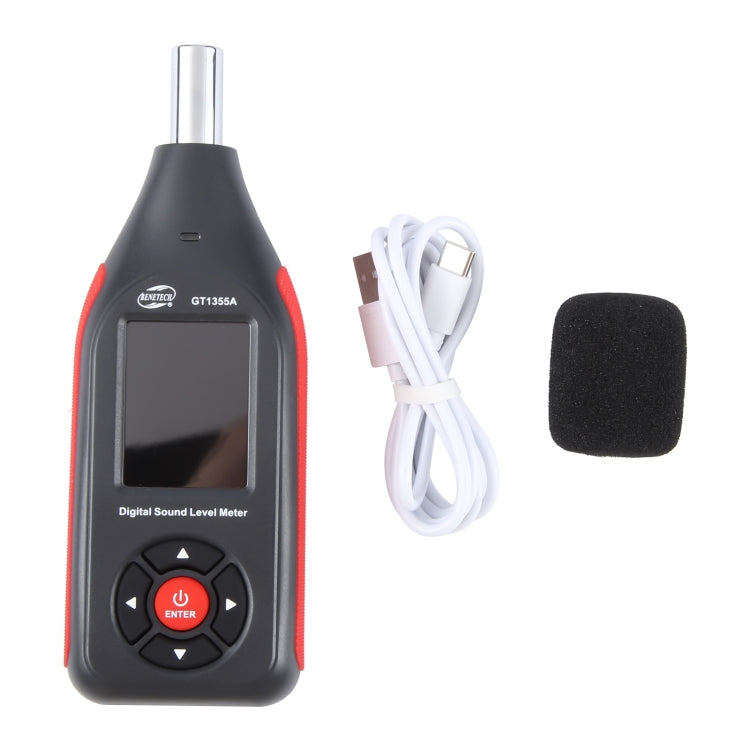

BENETECH GT1355A LCD 디스플레이 데시벨 테스터

₩51,000 KRW

재고 있음

Receives in 7 days.

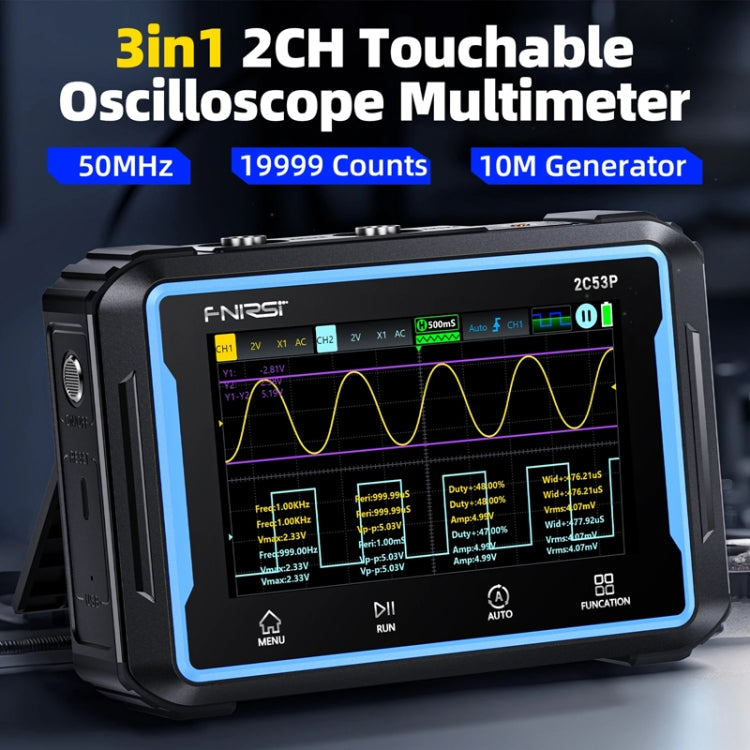

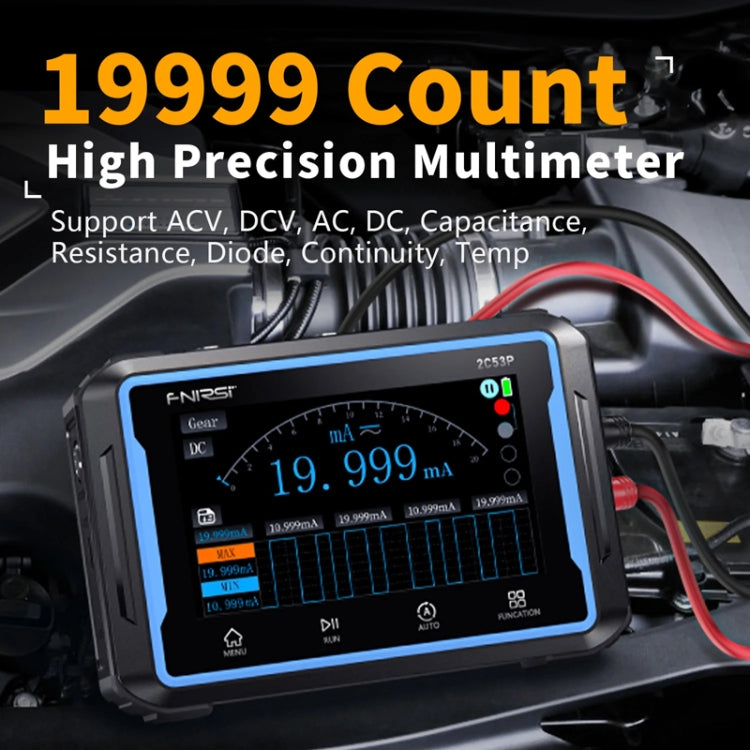

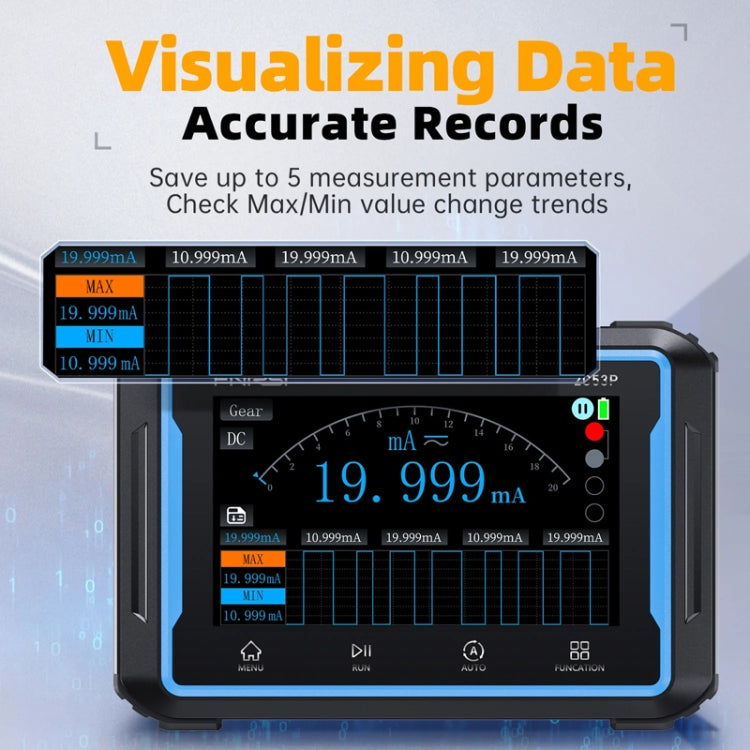

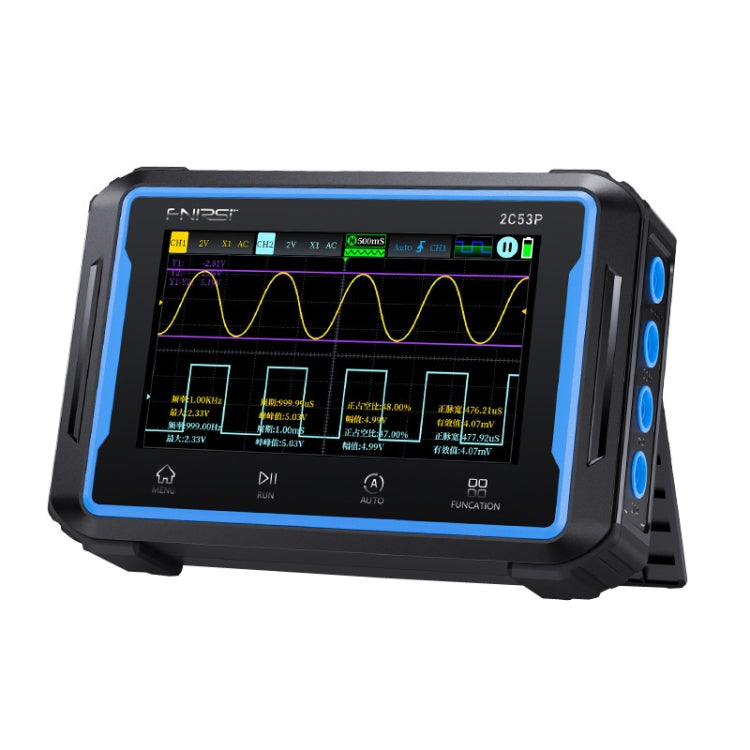

FNIRSI 2C53P 듀얼 채널 평판 디지털 오실로스코프 멀티미터 신호 발생기 3-in-1, 2C53P

FNIRSI

FNIRSI 2C53P 듀얼 채널 평판 디지털 오실로스코프 멀티미터 신호 발생기 3-in-1, 2C53P

₩221,000 KRW

1. 4.3-inch IPS ultra-high definition screen, easy to use
2. Built-in high-capacity lithium battery, long battery life
3. Using the core of a powerful FPGA + MCU + high-speed ADC hardware architecture system waveforms smooth and clear
4. Measurement of millivolt level of weak signals, support for 20M bandwidth limits
5. Powerful waveform computing capabilities, real-time addition, subtraction, multiplication and division operations, in-depth analysis and processing of complex signals
6. Real-time capture and display the changes in a variety of measurement parameters, forming a clear and concise data trend graph, but also has the ability to retain up to 5 groups of measurement data, at a glance
7. Double current fuse, to prevent burning the meter more safely
8. Easy to manage oscillometric images, can be connected to a computer via USB cable for secondary analysis
9. Lightweight, one-handed, easy to put into a pocket or toolkit, convenient to carry

Basic parameters:
1. Screen material: surface tempered glass + glass GLASS material touch screen + IPS color screen
2. Backlight: backlight brightness can be set
3. Power supply: Type-C (5V/2A)
4. Battery: 4000mAh li-ion battery
5. Size: 145 x 98 x 35mm
6. Weight: 360g

Oscilloscope parameters:
1. Channel: dual-channel
2. Bandwidth: 50MHz
3. Real-time sampling rate: 250MSa / s
4. Memory depth: up to 64kByte
5. Time base range: 10ns/div-10s/div
6. Vertical sensitivity: 10mv/div-10v/div
7. Waveform display mode: YT / XY / scrolling
8. Vertical resolution: 8 bits
9. Input impedance: ΙΜΩ
10. Bandwidth limitation: support 20MHz limitation
11. Probe attenuation factor: 1x/10x
12. Input coupling: AC/DC
13. Trigger type: rising edge/falling edge
14. Maximum voltage: +/-400V
15. Trigger level range: 8 cells (positive and negative)
16. Trigger mode: automatic / normal / single
17. Memory space: 13M
18. Measurement data: period, frequency, peak-to-peak value, maximum value, minimum value, average value, RMS value, amplitude, duty cycle and pulse width

Signal generator parameters:
1. Different waveform output frequency: sine wave: 10MHz, other waveforms: 5MHz
2. Waveform frequency: 0-10ΜΗz
3. Waveform amplitude: 0.1V-3.0V
4. Duty cycle of square wave: 0-100 percent

Multimeter parameters:
1. DC voltage: 1.9999V/19.999V/199.99V/1000.0V
2. AC voltage: 1.9999V/19.999V/199.99V/760.0V
3. DC current: 19.999mA/199.99mA/1.9999A/9.999A
4. AC current: 19.999mA/199.99mA/1.9999A/9.999A
5. Resistance: 19.999ΜΩ/1.9999ΜΩ/199.99ΚΩ/19.999ΚΩ/1.9999ΚΩ/199.99Ω
6. Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF9.999mF/99.99mF
7. Temperature: -55-1300 degrees celsius/-67-2372 degrees fahrenheit

Specification:

Package Weight

One Package Weight

0.97kgs / 2.14lb

One Package Size

24cm * 14cm * 7cm / 9.45inch * 5.51inch * 2.76inch

Qty per Carton

20

Carton Weight

21.00kgs / 46.30lb

Carton Size

49cm * 31cm * 39cm / 19.29inch * 12.2inch * 15.35inch
